Heavy Duty Track Closer US26D – LCN Door Hardware

Description

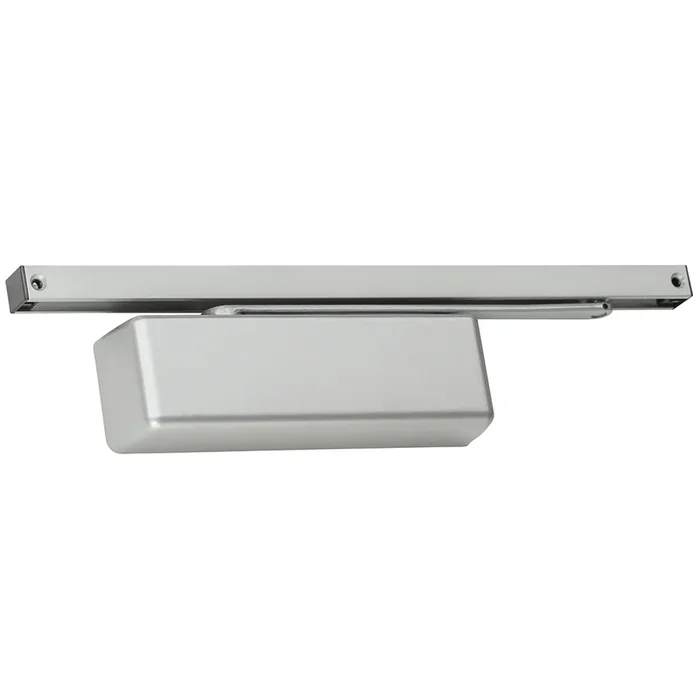

LCN 4011T-STD RH 652 Heavy-Duty Track Closer US26D

LCN 4011T-STD RH 652 Heavy Duty Track Closer US26D is an exceptional standard track door closer designed for right-hand applications in institutional and high-traffic environments. Renowned for its robust performance, this closer is part of the esteemed 4010T Series, which is engineered specifically to withstand the demands of rigorous use while ensuring reliability and safety. Constructed with a full plastic cover in a sleek satin chrome finish, the LCN 4011 offers both aesthetics and functionality. It meets ANSI/BHMA Grade 1 standards and is UL and cUL listed, providing peace of mind with a 30-year limited warranty. The adjustable non-sized cylinder accommodates interior doors up to 4’6″ and exterior doors up to 3’6″, making it versatile for various installations.Designed for ease of use, the LCN Green Dial spring force indicator simplifies adjustments, eliminating guesswork. The hydraulic mounting ensures smooth operation, while the option for custom finishes allows for tailored aesthetics. Additionally, cold weather fluid compatibility enhances performance in extreme conditions.With a swing degree of 180 and a ship weight of 16 lbs, the LCN 4011T-STD is the ideal choice for those seeking a durable and efficient door closer for commercial applications.

Heavy Duty Track Closer US26D

Standard Track Door Closer, Right Hand, Satin Chrome

The 4010T is LCN’s best performing heavy duty surface track door closer designed for institutional and other high traffic applications.

The 4010T is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

• The 4010Series mounts hinge pull side.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Attributes

Manufacturer surcharge: 4.5%

Arm Type: Slide Track Arm, Standard

Baa Qualified: Yes

Base Material: Brass or Bronze

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Cover: Full Plastic

Degree Swing: 180 Deg.

Finish: 626/US26D

Finish Family: Matte Silver

Grade: Grade 1

Handing: Right-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 30 Years

Mounting Group: Hydraulic

Mounting Location: Pull Side

Mounting Style: Regular

Pack Qty: 1

Series: 4010T Series Surface Mounted Closers

Ship Weight: 16 lbs.

Subtype: Surface Closers

Type: Surface

Unit of Measure: Each

Resources

• 4010T Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010T Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
