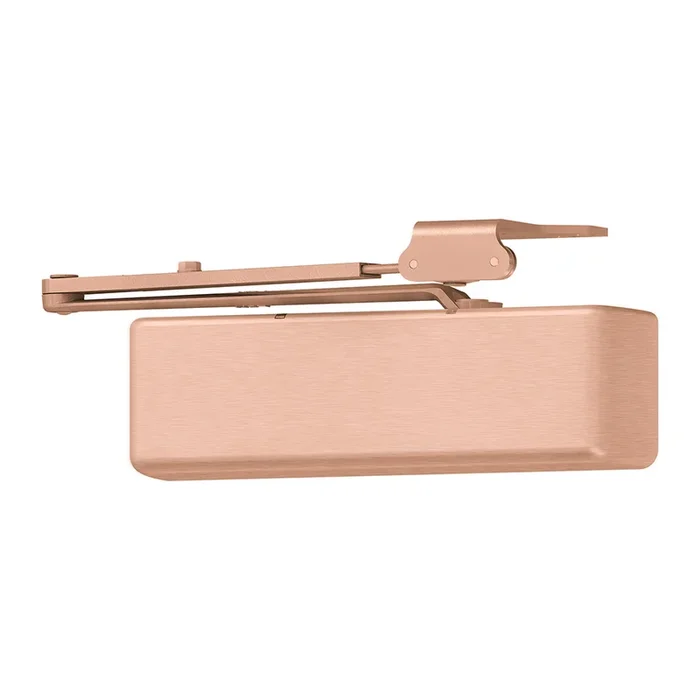

LCN 4040XP-RW/PA RH 639 Heavy Duty Surface Closer – US10
LCN 4040XP-RW/PA RH 639 Heavy Duty Surface Closer US10 offers unmatched durability and flexibility, making it ideal for institutional and high-traffic environments. This Grade 1 surface door closer features a regular arm and PA shoe, allowing for versatile push or pull side mounting, with an impressive 120-degree swing. The adjustable size range of 1 to 6 ensures compatibility with various door specifications. Crafted from robust materials, the 4040XP boasts a metal cover with a satin bronze clear coated finish, enhancing both aesthetics and longevity. Its design includes a 44% increased bearing load capacity, the strongest pinion ever at a 3/4″ journal diameter, and the widest bearing at 5/8″. The new V-shield™ seal promises a 20% longer life, ensuring reliable performance in real-world applications. Installation is simplified with LCN® Fast™ Power Adjust technology, allowing for quick and accurate setup. This closer meets ADA requirements and is UL and cUL listed for self-closing doors. Additionally, it is available with optional custom finishes and can be mounted in various configurations, making the LCN 4040XP an exceptional choice for commercial installations. Backed by a 30-year limited warranty, it represents a significant investment in safety and reliability.
Heavy Duty Surface Closer US10
Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Bronze Clear Coated Finish, Right-Handed
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 120 Deg.
Delay: No
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Height: 5.75″
Pack Height 2: 9.25″
Pack Length: 16″
Pack Length 2: 16.5″
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25″
Pack Width 2: 12.5″
Product Height: 3.75″
Product Length: 12″
Product Width: 2.25″
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
