Heavy Duty Cast Iron Door Closer – LCN Closers

Description

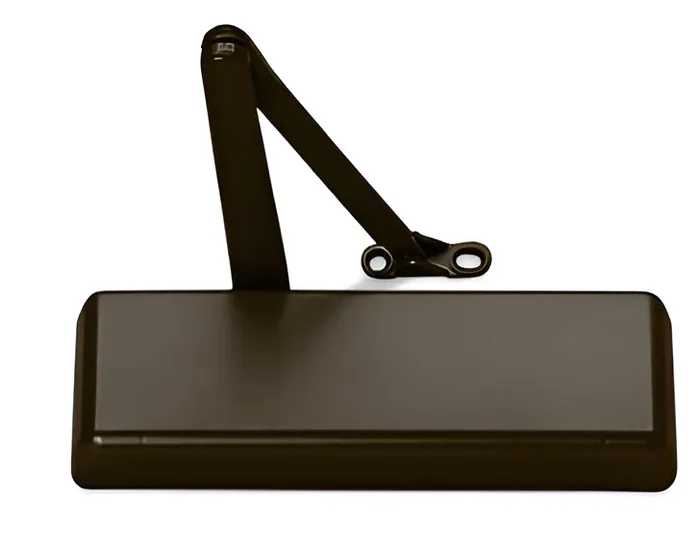

LCN 4011-REGARM-DKBZ-RH Heavy Duty Cast Iron Closer, Grade 1, ADA Adjustable, Right Hand, Dark Bronze

LCN Closers 4011-REGARM-DKBZ-RH Heavy Duty Cast Iron Closer offers unparalleled strength and durability, tailored for high-traffic environments. Designed for pull-side mounting, this Grade 1 closer is equipped with a robust cast iron body, ensuring it meets the demands of continuous use. The adjustable spring size from 1 to 5 allows for customized performance, accommodating various door weights and traffic patterns. Featuring a standard plastic cover finished in a dark bronze powder coat, the LCN 4011 is not only functional but also aesthetically pleasing. The patented LCN Green Dial spring power indicator simplifies adjustments, eliminating guesswork and ensuring precise operation. With its UL and cUL listing, and adherence to ANSI/BHMA Grade 1 standards, this closer guarantees reliability and safety. The heavy-duty construction includes a full-complement bearing and a double heat-treated steel pinion journal, enhancing longevity and performance. The all-weather fluid ensures smooth operation in diverse conditions, making it an ideal choice for both commercial and residential applications. With a remarkable 30-year warranty, the LCN Closers 4011-REGARM-DKBZ-RH stands as a testament to quality and dependability, making it a top choice for building professionals and discerning homeowners alike.

Heavy Duty Cast Iron Closer, Plastic Cover, Grade 1, ADA Adjustable Size 1-5, Right Hand, Regular Arm for Pull Side Mounting, TB/SRT Screw Pack, 695/DKBZ Dark Bronze Powder Coat

Notice: The info below is not item specific.

The 4010, 4020 and 4110 series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring power indicator, which takes the guesswork out of adjustment.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/2″ diameter piston
• Double heat-treated steel pinion journal
• All-weather fluid
• LCN patented Green Dial spring power indicator
• 30-year warranty
• Application specific handed
• Standard plastic cover
• Adjustable spring sizes 1-5 or 6 only

Specifications:

• Certifications: Grade 1 – ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA – buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2″ diameter piston
• 11⁄16″ diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Templating: Peel-n-Stick templates – 2-1⁄2″ x 6″ mounting hole pattern
• Size: Adjustable 1-5 or sized 6
• Cover: Plastic cover (PC), standard, metal cover (MC), optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (Pull side)

Optional Arms:

• 4010-3077: Regular Arm (REGARM)
• Non-handed
• 4010-3049: Hold Open Arm (H)
• Handed
• Provides hold open function, adjustable at elbow
• Optional
• 4010-3049FL: Fusible Link Arm (FL)
• Handed
• Releases hold-open function when exposed to temperatures above 165° F; 1/8″ (3 mm) maximum reveal
• Optional
• Note: Check local codes before specifying FL arms. Not A life safety product!

Finishes:

• 622 – Matte black
• 689 – Aluminum
• 690 – Statuary bronze
• 691 – Light bronze
• 693 – Gloss black
• 695 – Dark bronze
• 696 – Brass

Attributes

Alternate Codes: 4011-REGARM-DKBZ-RH, 4011REGARMDKBZRH, LCN4011-RW-DKBZ-RH

Arm Function: Non-Hold Open

Arm Type: Regular

Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts

Certifications: A156.4, ANSI, Buy American Act, UL 10C

Closer Type: Surface

Cover: Plastic

Cylinder Type: Standard

Door Application: Door Closers, Surface Mount Closers

Fasteners: TB Self Reaming & Tapping Screws

Finish Code: 695

Finish Color: Dark Bronze, Sprayed Duranotic

Grade: Grade 1

Handing: Left Handed

Manufacturer: LCN Closers

Material: Cast Iron

Mounting: Hinge (Pull Side)

Series: 4010

Spring Size: 1-5
