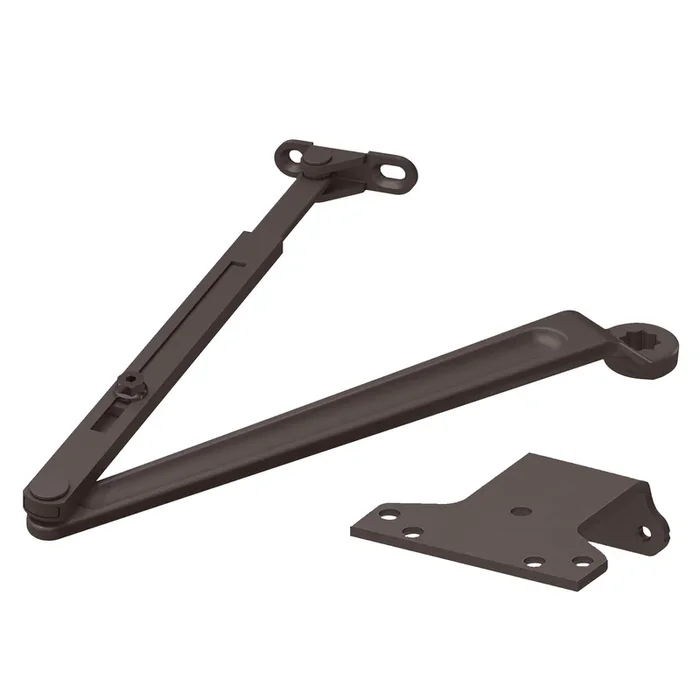

LCN 1460-3077HD/PA 695 Heavy Duty DKBRZ Arm
LCN 1460-3077HD/PA 695 Heavy Duty Arm DKBRZ offers reliable performance and durability for both commercial and institutional applications. This heavy-duty regular arm, designed specifically for the LCN 1460 Series, features a robust dark bronze painted finish and is non-handed, making it versatile for various installation needs. Constructed with a cast iron body, this Grade 1 closer boasts a 1-1/4 inch diameter piston and a heat-treated pinion journal, ensuring longevity and resilience. Its adjustable spring size ranges from 1 to 6, accommodating doors up to 5 feet for interiors and 4 feet for exteriors. The installation options are extensive, allowing for hinge side, top jamb, and parallel arm mounting on either right or left swinging doors. The LCN 1460 Series is equipped with independent adjustment valves to control backcheck, closing, and latching speeds, all concealed to prevent tampering. This closer meets ADA requirements, making it an ideal choice for accessibility. Additionally, the Cush-N-Stop® function protects against abrupt stops, preventing damage to the closer and door. With its quick installation features and minimal maintenance requirements, the LCN 1460-3077HD/PA is the perfect solution for high-traffic environments, combining functionality with reliability.
Heavy Duty Arm DKBRZ
Heavy Duty Regular Arm for 1460 Series with 62PA Shoe, Dark Bronze Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Finish: 695
Finish Family: Dark Bronze
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Mounting Style: Tri Mount
Pack Qty: 1
Series: 1460 Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
