Description

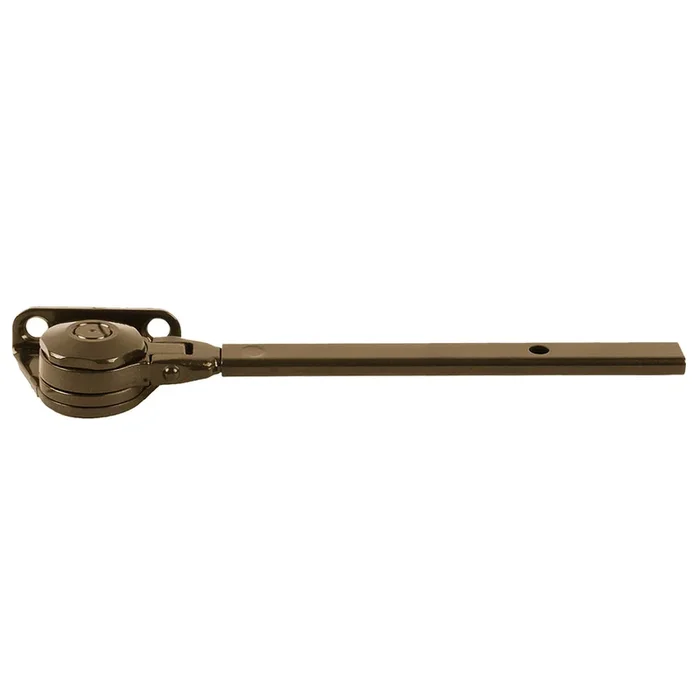

LCN 4040XP-3048L 690 STAT Head and Long Tube
LCN 4040XP-3048L 690 Head and Long Tube STAT offers unparalleled durability and performance, specifically designed for high-traffic environments. This heavy-duty closer, finished in statuary bronze, is built to withstand the rigors of institutional use while providing exceptional reliability. Its non-handed design allows for versatile installation options, including hinge side, top jamb, or parallel arm configurations on both right and left swinging doors. Engineered with a robust construction, the LCN 4040XP features a 3/4″ journal diameter pinion and the widest bearing ever at 5/8″. It boasts a 44% increased bearing load capacity, making it one of the strongest closers available. The innovative V-shield™ seal extends product life by 20%, ensuring long-lasting performance in real-world applications. Installation is fast and straightforward, thanks to LCN® Fast™ Power Adjust technology. This closer meets ANSI Standard A156.4, grade one, and is UL & cUL listed for self-closing doors without hold-open features. Suitable for both commercial and residential applications, the 4040XP can accommodate doors up to 5’0″ for interiors and 4’0″ for exteriors. With a limited 30-year warranty and various finish options available, this closer is the perfect solution for demanding environments.
Head and Long Tube STAT
Head and Long Tube Assembly, Statuary Bronze Finish
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 690
Finish Family: Dark Bronze
Grade: Grade 1
Installation: Commercial
Limited Warranty: 30 Years
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Parts
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4040XP Brochure
- 4040XP Feature Enhancements
- 4040XP Series Cut Sheet
- 4040XP Series Surface Mounted Closers Cut Sheet
- 4040XP/4041DA Installation Instructions
- LCN 4000 Series Catalog
- LCN 4040XP Closer Installation Video
- LCN 4040XP Series Infographic
- LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
- LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
- LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
- LCN 4040XP/4041DA Drop Plate Installation Guide
- LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
