Richelieu WEBKIT1246000 HAWA JUNIOR 100 GP System Instructions
Richelieu WEBKIT1246000 HAWA JUNIOR 100 GP System is a sophisticated solution designed for sliding glass doors weighing up to 100 kg (220 lb) each. This top-running sliding system is equipped with secure clamp-patch fittings, accommodating glass thicknesses from 8 to 12.7 mm (5/16 in to 1/2 in). Users can choose between a standard hardware set featuring SoftStop dampers or upgrade to the SoftMove magnetic soft close mechanism, which operates with a gentle pull force of less than 22 N. The system offers versatile track options, including surface or recessed anodized ceiling tracks and wall-mounted angle profiles, making it suitable for both pocket door applications and stationary glass configurations. Available in elegant finishes such as Satin Silver, Brushed Stainless Steel Look, and Chrome Plated, the HAWA JUNIOR 100 GP System enhances the aesthetic appeal of any space. With a minimum door width of 800 mm (31 1/2 in) for soft close functionality, it is ideal for residential, commercial, and institutional projects, including kitchens, offices, and medical clinics. Backed by a 15-year performance guarantee for residential use, this system is designed for durability and ease of installation. Always use metric dimensions for accuracy, and ensure glass is drilled as per instructions for optimal performance.

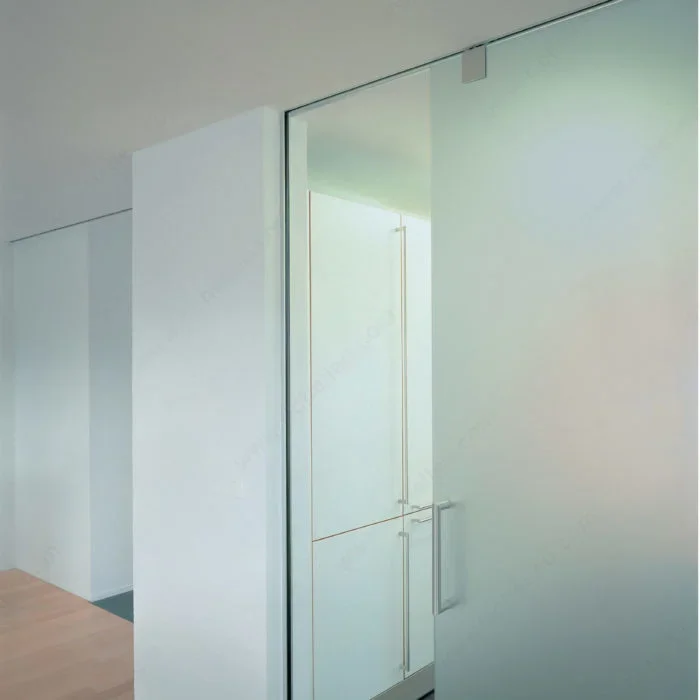

HAWA JUNIOR 100 GP System
The HAWA JUNIOR 100 GP System is for sliding glass doors weighing up to 100 kg (220 lb) each. This is a top-running sliding system equipped with a secure clamp-patch fitting for solid or multi-layer glass up to 12.7 mm (1/2 in) thick. Select the standard hardware set with SoftStop dampers or upgrade to the innovative SoftMove magnetic soft close mechanism with low opening forces of less than 22 N.
Features:
– For glass thickness of 8 to 12.7 mm (5/16 in to 1/2 in)
Track options:
– Surface or recessed anodized ceiling track
– Wall mount with angle profile
– Removeable track for pocket door applications
– Single track with pocket for stationary glass
Round or square cover caps for clamp patch fitting are available in Satin Silver, Brushed Stainless Steel Look, and Chrome Plated finishes.
SoftStop track stopper with damper and adjustable retention spring resists door bounce back
SoftMove magnetic soft close mechanism with less than 22 N pull force is available.
Minimum door width: 800 mm (31 1/2 in) for soft close in both directions; can be used for pocket doors.
Covered by a factory performance guarantee of 15 years for private residential use and 7 years for commercial use (reference terms and conditions for more information).
Optional spring-loaded stopper is available to push open pocket doors.
An ideal solution for residential, commercial, and institutional projects, suitable for for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms and washrooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Glass must be drilled as per instructions for clamp patch fitting.
Attributes
Ship via: No UPS – Common Carrier Only
Adjustable: Yes
Application: Pocket Door
Brand: Junior 80/100
Brand Model: Hawa Junior 80/100
Color: Matte Chrome
Compatible with: Hawa Junior 100 GP
Detailed Door Movement: Single sliding
Door Height: 39 3/8 to 157 in*
Door Installation: Top Hung
Door Material: Glass
Door Movement: Pocket Door
Door Width: 31 1/2 to 59 in*
Finish: Anodized, Matte Chrome (174)
Function: Sliding Door
Glass Thickness: 5/16 to 1/2 in*
Length – Overall Dimensions: 80 1/8 in*
Load Capacity: 176 to 220 lb*
Manufacturing Material: Aluminum
Overall Length: 80 1/8 in*
Product #: WEBKIT1246000
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Magnet
Soft- Closing: Yes
Standards and Certifications: ADA
Stopper: Two
Track Finish: Anodized
Track Material: Anodized Aluminum
Track Mounting: Pocket Door
Track type: Box Track
Weight Capacity per Door: 176 to 220 lb*
Resources
- Datasheet
- Glass Cut Out
- Installation
- Instructions
- Line art
- Rough Opening Track Length
