Description
Richelieu WEBKIT1249197 HAWA Folding Concepta III 20/25 Push System
Richelieu HAWA Folding Concepta III 20/25 Push is a sophisticated bifold and slide-in pocket door system designed for seamless integration in various spaces. This innovative system accommodates wood door panels weighing up to 44 lbs (20 kg) or 55 lbs (25 kg) each, with a maximum combined weight of 88 lbs (40 kg) or 110 lbs (50 kg) for a pair of doors.Featuring a push-to-open mechanism, the doors effortlessly retract into the pocket area with a gentle nudge, eliminating the need for handles. The concealed hinge incorporates a soft-close feature that ensures smooth, quiet operation, while the open and close assist mechanism minimizes user effort. Installation is straightforward, requiring only hand drilling and a minimal number of screw points, making it ideal for both professionals and DIY enthusiasts. The HAWA Folding Concepta III is versatile, suitable for various applications such as kitchen pantries, home offices, and closets. With adjustable hardware that can be easily cut for different door heights and simple front adjustments, customization is a breeze. Available in two attractive finishes-Plain and Black Anodized-this system not only enhances functionality but also complements modern aesthetics. For a refined and practical solution, the HAWA Folding Concepta III is the perfect choice for any project.
HAWA FOLDING CONCEPTA III 20/25 PUSH
The Hawa Folding Concepta III 20/25 Push system is a bifold and slide-in pocket door system for two leaves with a push-to-open feature. For wood door panels weighing up to 44 lbs (20 kg) or 55 lbs (25kg) each. For a pair of doors, maximum weight capacity is 88 lbs (40 kg) or 110 lbs (50 kg).
Features:
– Two types of mechanisms based on door weight and height
– Concealed hinge with soft-close mechanism
– Soft close mechanism for soft damping
– Requires minimal effort to operate thanks to an open and close assist mechanism
– The PUSH version can retract the doors fully into the pocket area without handles and with a gentle push the door will slide out of the pocket
– The PUSH device will unfold the doors with a gentle push, too
– Two choices of finish: Plain and Black Anodized
– Flexible installation: the hardware can easily be cut for a wide range of door heights
– Adjustments are simple from the front and outside of the pocket area
– Good selection of door configurations for 2, 3 or 4 panel/door applications
– Requires a small 3-3/4 in x 4-11/32 in (95 mm x 110 mm) space inside the pocket area to retract the mechanism
– Packaged well and simple to inventory for volume projects– no special order required
IMPORTANT:
– Can be easily installed by hand drilling and has very few screw points. CNC not required.
– The HAWA Configurator is simple to use to calculate drilling patterns for the cabinet and the door:- For additional technical support, call 800-334-0818 (US) or 844-775-3039 (Canada)

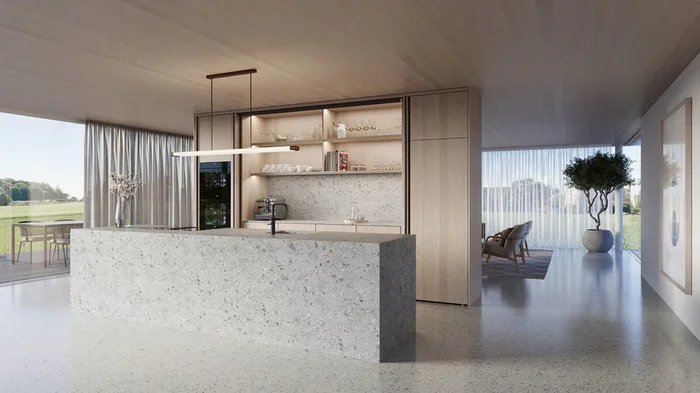

The HAWA-Folding Concepta III 20/25 PUSH is an ideal solution for kitchen pantries, home offices, laundry rooms, storage areas, closets/wardrobes, and self-serve food and beverage areas.
Attributes
Adjustable: Yes
Application: Wardrobe, Pantry, Furniture, Storage
Brand: Folding Concepta
Detailed Door Movement: Push
Door Height: 47 1/4 to 86 5/8 in*
Door Installation: Right hand
Door Material: Wood
Door Movement: Folding, Pocket Door, Pivot and Slide
Door Thickness: 23/32 to 1 1/32 in*
Door Weight: 13.2 to 44.1 lb*
Door Width: 17 3/8 to 29 1/2 in*
Finish: Black
Number of Doors: 2
Product #: WEBKIT1249197
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
” target=”_blank”>https://configurator.hawa.com/configurator/product-selector.html
– For additional technical support, call 800-334-0818 (US) or 844-775-3039 (Canada)
The HAWA-Folding Concepta III 20/25 PUSH is an ideal solution for kitchen pantries, home offices, laundry rooms, storage areas, closets/wardrobes, and self-serve food and beverage areas.
Attributes
Adjustable: Yes
Application: Wardrobe, Pantry, Furniture, Storage
Brand: Folding Concepta
Detailed Door Movement: Push
Door Height: 47 1/4 to 86 5/8 in*
Door Installation: Right hand
Door Material: Wood
Door Movement: Folding, Pocket Door, Pivot and Slide
Door Thickness: 23/32 to 1 1/32 in*
Door Weight: 13.2 to 44.1 lb*
Door Width: 17 3/8 to 29 1/2 in*
Finish: Black
Number of Doors: 2
Product #: WEBKIT1249197
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
