Description
Richelieu WEBKIT1249210 HAWA Concepta III 20/25 Folding Push System
Richelieu HAWA Folding Concepta III 20/25 Push offers a sophisticated bifold and slide-in pocket door system designed for seamless functionality and aesthetic appeal. This innovative system accommodates two wood door panels, with weight capacities of up to 44 lbs (20 kg) or 55 lbs (25 kg) each, and a total maximum weight capacity of 88 lbs (40 kg) or 110 lbs (50 kg) for paired doors. The system features a concealed hinge equipped with a soft-close mechanism, ensuring smooth and silent operation. Its push-to-open capability allows doors to retract fully into the pocket without handles; a gentle push will effortlessly slide the doors open or closed. With flexible installation options, the hardware can be easily cut to accommodate a variety of door heights, and adjustments can be made from the front of the pocket area. Available in plain or black anodized finishes, the HAWA Folding Concepta is ideal for diverse applications, including kitchens, home offices, and wardrobes. It requires minimal installation effort, as it can be hand-drilled with only a few screw points, eliminating the need for CNC machinery. This makes it a practical choice for professionals seeking efficiency and reliability in their projects.
HAWA FOLDING CONCEPTA III 20/25 PUSH
The Hawa Folding Concepta III 20/25 Push system is a bifold and slide-in pocket door system for two leaves with a push-to-open feature. For wood door panels weighing up to 44 lbs (20 kg) or 55 lbs (25kg) each. For a pair of doors, maximum weight capacity is 88 lbs (40 kg) or 110 lbs (50 kg).
Features:
– Two types of mechanisms based on door weight and height
– Concealed hinge with soft-close mechanism
– Soft close mechanism for soft damping
– Requires minimal effort to operate thanks to an open and close assist mechanism
– The PUSH version can retract the doors fully into the pocket area without handles and with a gentle push the door will slide out of the pocket
– The PUSH device will unfold the doors with a gentle push, too
– Two choices of finish: Plain and Black Anodized
– Flexible installation: the hardware can easily be cut for a wide range of door heights
– Adjustments are simple from the front and outside of the pocket area
– Good selection of door configurations for 2, 3 or 4 panel/door applications
– Requires a small 3-3/4 in x 4-11/32 in (95 mm x 110 mm) space inside the pocket area to retract the mechanism
– Packaged well and simple to inventory for volume projects– no special order required
IMPORTANT:
– Can be easily installed by hand drilling and has very few screw points. CNC not required.
– The HAWA Configurator is simple to use to calculate drilling patterns for the cabinet and the door:- For additional technical support, call 800-334-0818 (US) or 844-775-3039 (Canada)

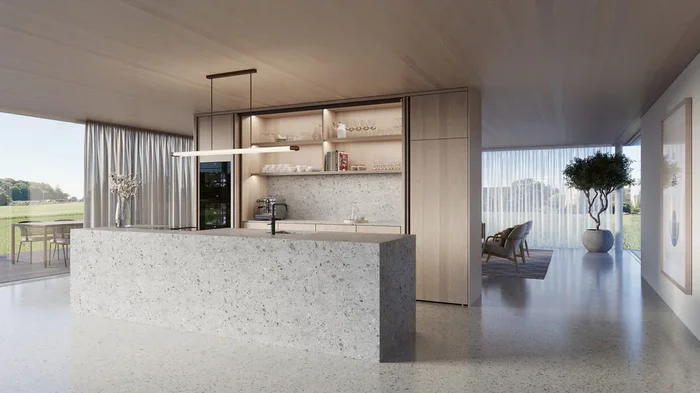

The HAWA-Folding Concepta III 20/25 PUSH is an ideal solution for kitchen pantries, home offices, laundry rooms, storage areas, closets/wardrobes, and self-serve food and beverage areas.
Attributes
Ship via: No UPS – Common Carrier Only
Adjustable: Yes
Application: Wardrobe, Pantry, Furniture, Storage
Brand: Folding Concepta
Detailed Door Movement: Push
Door Height: 74 3/4 to 106 in*
Door Installation: Left hand
Door Material: Wood
Door Movement: Folding, Pocket Door, Pivot and Slide
Door Thickness: 23/32 to 1 1/32 in*
Door Weight: 22 to 55.1 lb*
Door Width: 17 3/8 to 29 1/2 in*
Finish: Anodized
Number of Doors: 3
Product #: WEBKIT1249210
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
” target=”_blank”>https://configurator.hawa.com/configurator/product-selector.html
– For additional technical support, call 800-334-0818 (US) or 844-775-3039 (Canada)
The HAWA-Folding Concepta III 20/25 PUSH is an ideal solution for kitchen pantries, home offices, laundry rooms, storage areas, closets/wardrobes, and self-serve food and beverage areas.
Attributes
Ship via: No UPS – Common Carrier Only
Adjustable: Yes
Application: Wardrobe, Pantry, Furniture, Storage
Brand: Folding Concepta
Detailed Door Movement: Push
Door Height: 74 3/4 to 106 in*
Door Installation: Left hand
Door Material: Wood
Door Movement: Folding, Pocket Door, Pivot and Slide
Door Thickness: 23/32 to 1 1/32 in*
Door Weight: 22 to 55.1 lb*
Door Width: 17 3/8 to 29 1/2 in*
Finish: Anodized
Number of Doors: 3
Product #: WEBKIT1249210
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
