HAWA-220 Planfront System for Sliding Cabinet Doors – Richelieu

Description

Richelieu 8913234 HAWA-220 Sliding Cabinet Door System with Flush Mounting

Richelieu 8913234 HAWA-220 Planfront System for Sliding Cabinet Doors with Flush Mounting offers a seamless blend of functionality and aesthetic appeal, ideal for modern interiors. This innovative sliding system allows for doors to be mounted flush against paneling or cabinetry, providing a clean and sophisticated look. Perfect for concealing projection screens or creating sleek media walls, the coplanar sliding doors effortlessly slide behind a fixed front, enhancing your space’s versatility. Constructed from durable aluminum with a satin finish, the system supports a maximum load capacity of 154 lbs, ensuring reliable performance for a variety of applications, including closets, wardrobes, and storage solutions. The adjustable design accommodates door thicknesses between 3/4 to 1 25/32 inches and widths ranging from 15 3/4 to 59 inches, making it a flexible choice for different project requirements. With a left-hand opening and an upper roller position featuring ball bearing rollers, the HAWA-220 ensures smooth and quiet operation. Security is also prioritized, as the sliding doors can be locked using a standard bar bolt lock. Easy to install with ceiling mount track options, this system is a smart addition to any contemporary space seeking both style and practicality.

HAWA-220 Planfront System for Sliding Cabinet Doors with Flush Mounting

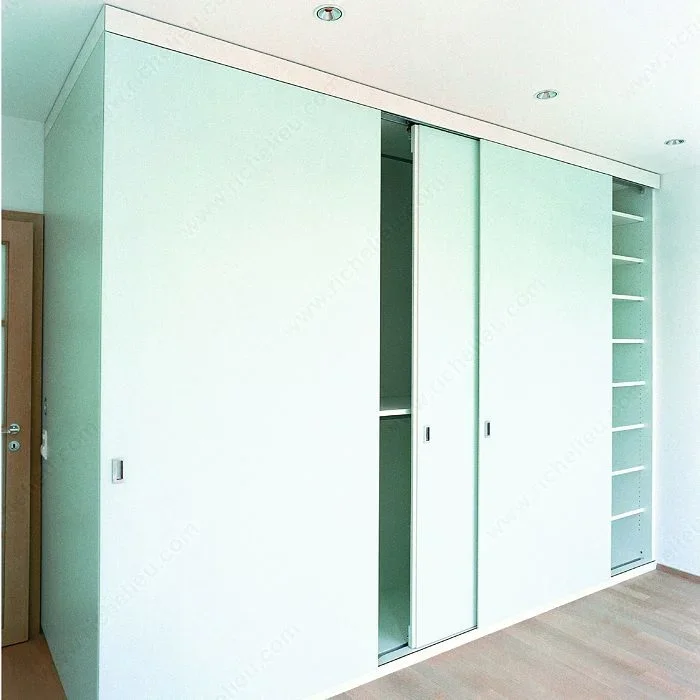

HAWA-220 Planfront 70 offers countless interior design possibilities. Sliding elements may be mounted flush to paneling or cabinets. Projection screens or media walls can be easily concealed, while the sliding doors can be moved parallel behind a fixed front. The doors can be locked using a standard bar bolt lock. The sliding elements run in the top track and are guided in a bottom guide channel.

Attributes

Adjustable: Yes

Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage, Pocket Door

Brand: Hawa

Door Material: Wood

Door Movement: Coplanar

Door Position: Inset/Inlay

Door Thickness: 19 to 45 mm

Door Width: 400 to 1 500 mm

Finish: Satin Aluminum

Length – Overall Dimensions: 59 in*

Load Capacity: Max. 154 lb*

Manufacturing Material: Aluminum

Number of Doors: 1

Opening: Left-Hand Opening

Overall Length: 1 500 mm

Product #: 8913234

Product number: 8913234

Product №: 8913234

Roller Position: Upper

Roller Type: Ball Bearing

Track Finish: Satin Aluminum

Track Length: 1 500 mm

Track Material: Anodized Aluminum

Track Mounting: Ceiling Mount

Unit: Box

Weight Capacity per Door: Max. 70 kg
