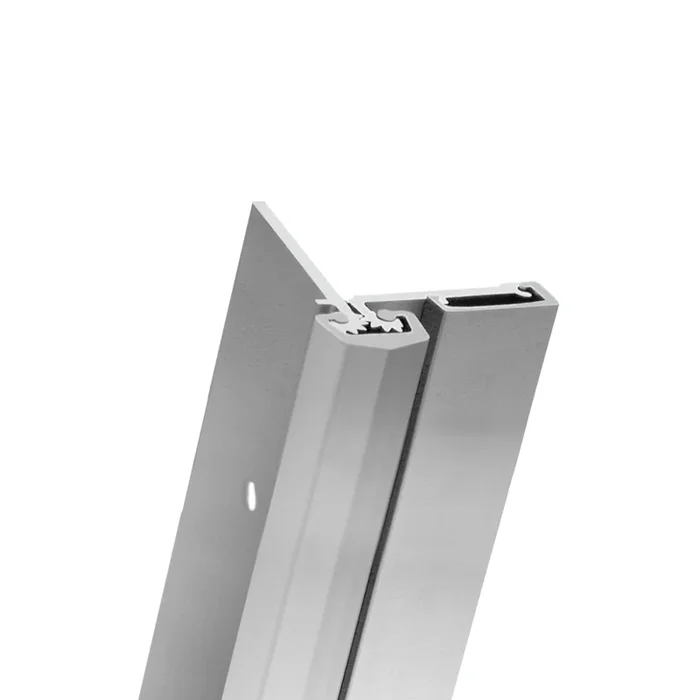

Select Products SL53-83-CL-HD Half Surface Heavy Duty Geared Continuous Hinge, 83in, Clear

SELECT Products Limited SL53-83-CL-HD Half Surface Heavy Duty Geared Continuous Hinge is engineered for durability and performance, making it an ideal choice for high-frequency applications. Crafted from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings that ensure smooth operation over time. With a length of 83 inches, it accommodates standard door heights and supports doors ranging from 1-3/8″ to 1-3/4″ thick, with options for long barrel nuts available for thicker doors. Designed to handle a maximum door width of 48 inches in 16 gauge hollow metal or 1/8″ aluminum, this heavy-duty hinge is rated for doors weighing up to 600 lbs when using Rivnuts in the frame for doors exceeding 450 lbs. Available in clear, dark bronze, and black anodized finishes, it can also be customized to meet specific aesthetic needs.The SL53 hinge allows for compatibility with various closer types, including conventional overhead and concealed sliding arm closers, enhancing its versatility. With a robust screw count of 10 door screws and 19 frame screws for secure installation, this non-handed hinge is perfect for a range of commercial and industrial applications. Elevate your door hardware solutions with the reliability and efficiency of the SL53-83-CL-HD hinge.

Half Surface Heavy Duty Geared Continuous Hinge, 83in, Clear

Notice: The info below is not item specific.

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83″, 85″, 95″ and 120″ lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8″ – 1-3/4″ doors standard; long barrel nuts available for 2″ – 2-1/4″ doors. 48″ max. door width in 16 gauge hollow metal (min.) or 1/8″ aluminum (min.).
• Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
• Finishes: All SL53 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL53 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83″ HD600	10	19
85″ HD600	10	19
95″ HD600	11	21
120″ HD600	14	23

Attributes

Alternate Codes: 141264, CHS83HD1, SEL SL5383CLH, SELSL5383CLH, SELSL53 CLHD 83IN, SL5383CLH, SL53-83-CL-HD, SL5383CLHD, SL53CLHD83, SL53CLHD83IN

Category: Continuous Hinges, Hinges

Door Size: 48″

Door Thickness: 1-3/4″

Handing: Non-Handed

Hinge Rating: 233 lbs

Hinge Size: 83″

Hinge Style: Full Mortise, Geared

Hinge Type: Continuous Hinge

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
