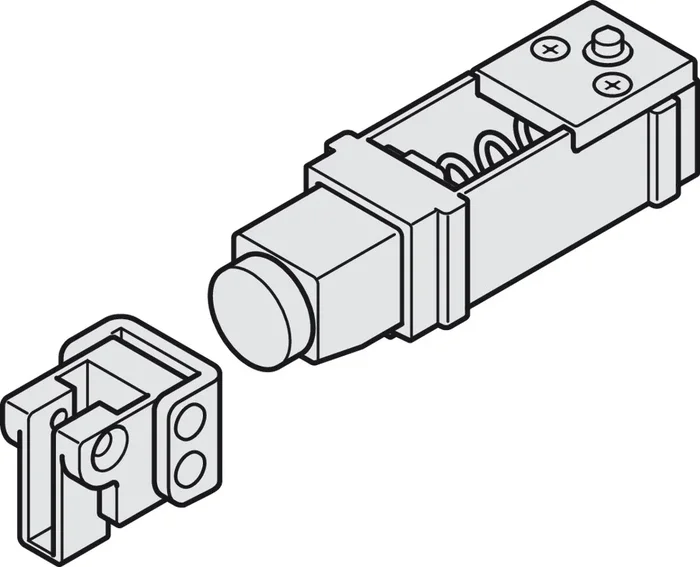

Hafele Track Stopper for Slido D-Line11 – Additional Set for Moveable Walls

Description

Hafele 940.42.312 Slido D-Line 11 Track Stopper Set for 50P-120P, 50C-120C, 50I-120I

Hafele 940.42.312 Track Stopper offers an innovative solution for your sliding door needs, specifically designed for the Slido Classic series. This track stopper accommodates door weights of up to 120 kg (264 lbs) and features a magnetic pull, ensuring your sliding doors stay securely in place. Ideal for both wooden and glass sliding doors, it enhances functionality by replacing the traditional pocket door edge pull, allowing users to effortlessly access flush pulls with a simple press on the door edge. Installation is straightforward, as the impact dampener is easily inserted into the upper track and secured with a set screw. To ensure optimal performance, a clearance of 20 mm (25/32″) between the door edge and the surrounding structure is required. This track stopper is compatible with several Slido Classic models, including 40-P to 120-P and 40-O to 120-O, making it a versatile addition to your hardware collection. Please note that this product is not suitable for use with soft and self-closing mechanisms, so plan your cut-out dimensions accordingly. The Hafele 940.42.312 Track Stopper is a reliable, efficient, and user-friendly component that elevates the functionality of your sliding door systems.

Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I

for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings, Door weight: 120 kg, with magnetic pull

For Slido Classic 40-P to 120-P and 40-O to 120-O sliding door fittings Replaces the pocket door edge pull; simply press on the edge of the sliding door and the spring of the impact dampener will push the sliding door far enough out so you can reach the flush pulls The impact dampener is simply inserted on one end of the upper track and fixed in place with a set screw For proper function of the impact dampener, a clearance of 20mm (25/32″) between the edge of the door and the structure must be provided

Not suitable for use in combination with soft and self closing mechanism. Plan cut-out dimensions for glass preparation accordingly

Attributes

Area of application: for wooden and glass sliding doors

Door weight max.: 264 lbs

Equipped with: Magnetic retention

For door weight: ≤120 kg

Functionality: The Push-to-Open soft closing mechanism replaces the sprung handle with sliding doors that run in walls. The door bounces out of the cavity after tapping it slightly so that the handle (depending on the mounting position) can be reached. With the version with the track stopper with magnetic retention, the door is also held in the open position.

Installation: The Push-to-Open track stopper is inserted into the running track from the front edge and fixed with the fixing screw. A wall distance of min. 20 mm must be provided in order to ensure the functionality of the soft closing mechanism. Please note the installation drawings for the respective sliding door models.

Product type: Track Stopper

Suitable for: Häfele Slido D-Line11 P, D-Line11 C , D-Line11 I, D-Line11 J, D-Line11 L

Resources

• CAD data
• Installation instructions
• TCH_Architectural_Hardware_ 2022 | Page 1.247
• TCH_Architectural_Hardware_ 2022 | Page 1.30
• installation instructions for Slido track stopper
