Hafele Slido F-Park 71 16A Pocket Door System

Description

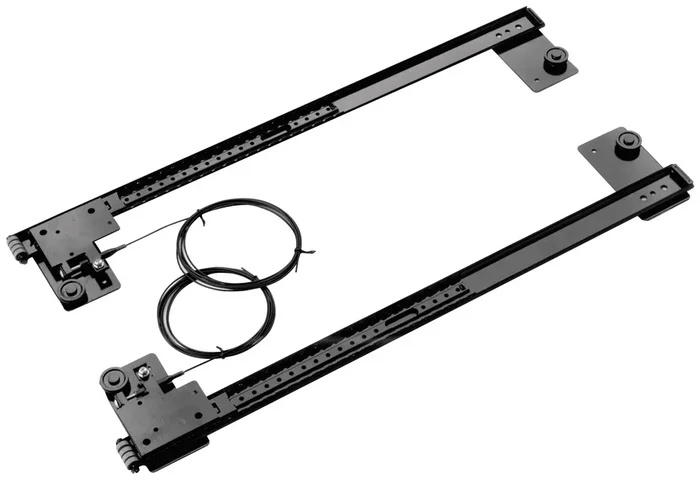

Hafele 408.24.315 Hafele Slido F-Park 71 Pocket Door System

Hafele 408.24.315 Pocket Door System, Hafele Slido F-Park 71 16A offers an innovative solution for seamless access to larger door cabinets, particularly in home theater applications. Designed to accommodate doors up to 60 inches high and 24 inches wide, this system supports weights of up to 35 lbs, making it versatile for various settings. The installation process is simplified with integral location tabs that eliminate the need for jigs or fixtures, significantly reducing production costs. Constructed with a black nylon-coated steel cable, the system not only enhances the appearance but also reduces friction for smooth operation. The soft rubber roller on the slide front protects the door from scratches and marring, ensuring your furniture maintains its aesthetic appeal. With adjustment screws for maximum flexibility and a cable tensioning adjustment located at the slide front, the Hafele Slido F-Park guarantees precise alignment. The positive out-stop feature keeps the door aligned in the closed position, while the cable runs parallel to the slide to eliminate excess pressure. Suitable for doors up to 1 1/4 inches thick, the Hafele 408.24.315 Pocket Door System is a reliable choice for those seeking quality and durability in architectural hardware.

Pocket Door System, Hafele Slido F-Park 71 16A

Length: 408 mm (16 1/16″)

Easily accessible from front of cabinet Soft rubber roller on slide front protects door front from scratches and marring Minimal installation and adjustment time for lower production costs
Steel cable is black nylon coated to reduce friction and enhance appearance Jigs or fixtures are not required to locate slide top and bottom, integral location tabs locate slides in cabinet Adjustment screws allow maximum adjustability, cable tensioning adjustment is located at the slide front
Cable runs parallel with slide to ensure smooth operation, eliminating excess pressure on slide Positive out-stop on slide keeps door in alignment in closed position

Attributes

Area of application: Especially suited for use in larger door cabinets such as home theater applications For use with doors up to 60″ high, 24″ wide & weighing up to 35 lbs. Accommodates doors up to 1 1/4″ thick

Color/finish: Black

For door height (inches): 32″

For door thickness max.: 1 1/4″

Length (inch): 16 1/16″

Material: Steel, Zinc-electroplated and plastic Cable: Steel, nylon coated

Travel: 11 1/2″

Resources

• Installation instructions
• Manufacturer information
• Slido F-Park71 Mounting Instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.120
