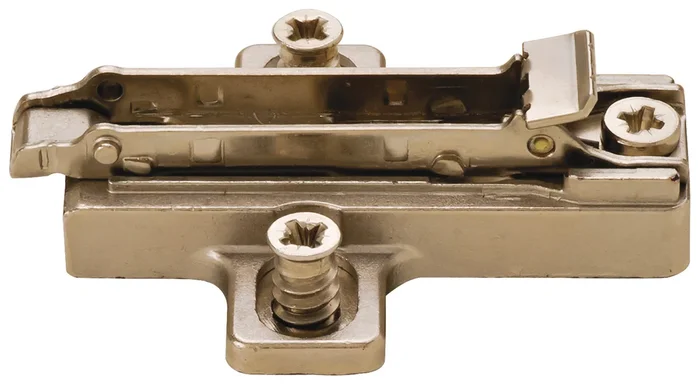

Hafele Salice Mounting Plate with Pre-Installed Euro Screws

Description

Hafele 329.71.512 Salice Mounting Plate with Pre-Installed Euro Screws

Hafele 329.71.512 Mounting Plate, Salice with Pre-Installed Euro Screws offers a robust and efficient solution for your cabinetry needs. Designed for use with Häfele Metalla 510 concealed hinges, this mounting plate features a quick fixing system that ensures a seamless installation process. The pre-installed 11 mm Euro screws simplify assembly, allowing for a reliable connection with chipboard screws. This mounting plate is crafted from durable zinc alloy and is finished in a sleek nickel plating, enhancing both its aesthetic appeal and longevity. With an adjustable height of ±2 mm and a depth adjustment ranging from -0.5 mm to +2.8 mm via eccentric, it provides flexibility to accommodate various installation requirements. The edge distance of 37 mm and a drilling depth of 11 mm make it versatile for different cabinetry applications. Ideal for professionals and discerning homeowners alike, the Hafele 329.71.512 ensures precision and stability in your projects. The screw distance of 32 mm and compatibility with a 5 mm drill hole further streamline the installation process. Elevate your cabinetry with this expertly engineered mounting plate, designed to deliver both performance and style in any setting.

Salice – Mounting Plate with Pre-Installed Euro Screws

quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 11 mm Euro screws, 2 mm, BARGR29/16, nickel-plated

Spring lever

Attributes

Adjustment facility: Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

Area of application: For Häfele Metalla 510 concealed hinges

Color/finish: nickel plated

Distance: 2.00 mm

Drilling depth: 11.00 mm

Edge distance: 37.00 mm

Fixing method: Quick fixing system SM

For drill hole Ø: 5.00 mm

Manufacturer: Häfele

Material: Zinc alloy

Model: BARGR29/16

Model series: Metalla 510 SM

Mounting plate version: For screw fixing with pre-mounted Euro screws

Screw distance: 32.00 mm

Suitable for: Häfele Metalla 510 concealed hinges

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.186
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.38
