Description

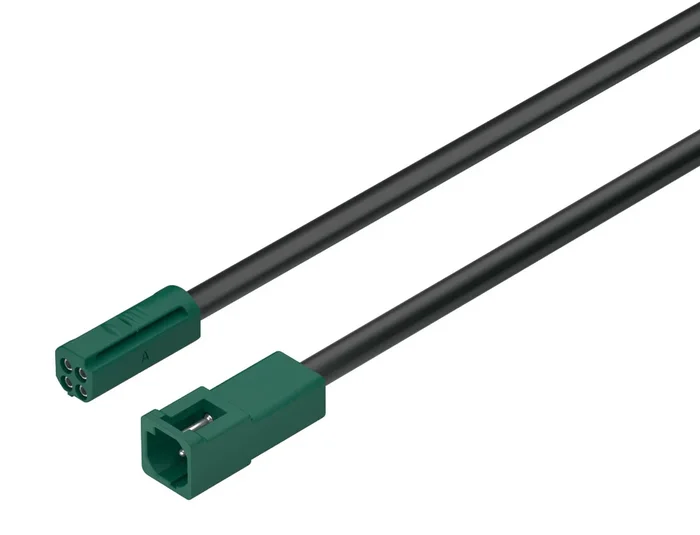

Hafele 833.95.897 Hafele Loox5 24V 3-Pin Extension Lead (Multi-White)
Hafele 833.95.897 Extension lead for Hafele Loox5 24 V, 3-pin (multi-white) is designed to enhance your lighting setup with efficiency and reliability. This extension lead boasts a robust 3.5 A current carrying capacity, making it suitable for various Loox5 multi-white lights. With a length of 29 ½ inches (750 mm), it provides the flexibility needed for effective installation while ensuring you meet the maximum lead length of 10 meters from the Loox5 driver to the device. Constructed from double-insulated plastic, this extension lead features a 20 AWG, 4-conductor stranded copper wire, rated for Class 2 applications. Its compliance with NEC regulations ensures safe and reliable usage in different environments. The lead comes equipped with one plug and one socket, both designed to accommodate 3-pin connections, facilitating easy integration into your lighting system. Keep in mind that longer cable lengths combined with significant loads may lead to voltage drops, potentially affecting light brightness. Therefore, it’s crucial to consider your specific setup requirements. The Hafele 833.95.897 is a practical solution for achieving optimal illumination while adhering to necessary safety standards.
Extension lead, Hafele Lighting 24 V, 3-pin (multi-white)
3.5 A, 20 AWG, Length: (29 1/2″) 750 mm
Wire gauge: 20AWG; Wire type: CL3R Construction: 4-conductor, stranded copper Rating: Class 2, double insulated
Lead length from Loox5 driver to device max. 10 m. Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver(24 V).
Attributes
Area of application: For Loox5 multi-white lights
Cable length: 750.00 mm
Color system: MW
Connections: 1 x socket, Loox5 3-pin MW 24 V
Current carrying capacity: 3.50 A
Drill hole Ø: Plug 3/8″; socket 1/2″
Input ports: 1 x plug, Loox5 3-pin MW 24 V
Length (inch): 29 1/2″
Material: Plastic
Nominal voltage: 24.00 V
Number of leads: 3.00
Plug drill hole Ø: 9.00 mm
Socket drill hole Ø: 13.00 mm
Supplied with: 1 extension lead plug/socket
Version: Meets the following codes for wire and cable locations: > NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power > NEC article 725.135 Installation of Class 2 cable > NEC article 411.5 Specific Location Requirements
Wire cross section AWG: 20.00
Resources
- CAD data
- Hafele_Lighting_ 2024 | Page 187
- Hafele_Lighting_ 2024 | Page 280
- Loox – Electrical Code Compliance
