Hafele Flap Stay Microwinch – Innovative Furniture Fitting Solutions

Description

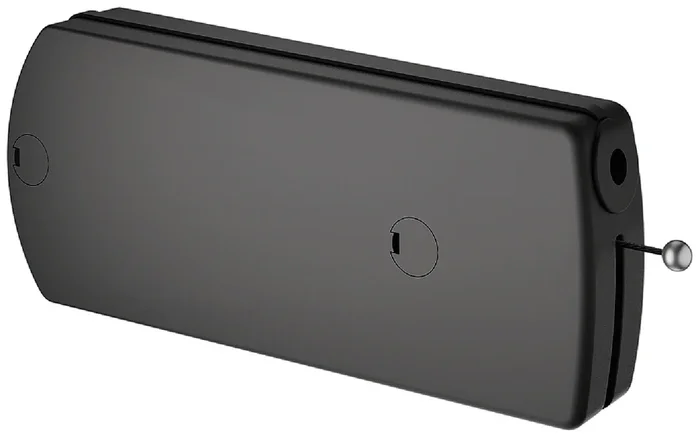

Hafele 365.48.312 Microwinch Flap Stay

Hafele 365.48.312 Flap Stay, Microwinch offers a versatile solution for managing wooden flaps with ease and efficiency. Designed with an adjustable opening angle, this flap stay allows for smooth operation in both horizontal and vertical configurations, making it suitable for various cabinet designs. Its compact dimensions of 26 x 68 x 160 mm ensure minimal space is required inside the cabinet, making it ideal for installations where depth is a concern, specifically for cabinets with a depth of ≥82 mm. The flap stay is crafted for right or left-hand use, providing flexibility in your assembly process. With a lid weight capacity of up to 9 kg, it effectively reduces the flap weight during adjustments, enhancing usability. Installation is straightforward, utilizing screw fixing with Euro screws, and it comes supplied with a front fixing bracket and mounting materials for added convenience. The flap stay features a sleek black finish with nickel-plated front fixing brackets, ensuring a stylish look that can seamlessly blend with any cabinetry style. Whether you’re a building professional or a knowledgeable homeowner, the Hafele 365.48.312 Flap Stay is an excellent choice for enhancing the functionality of your furniture.

Flap Stay, Microwinch

Model C, 100 N, black

Opening angle adjustable No time-consuming cabinet processing required for horizontal or vertical use (very little space required inside the cabinet) for right/left hand use
Opening angle adjustable No time-consuming cabinet processing required For horizontal or vertical use (extremely little space required inside the cabinet) For right/left hand use

Lower flap weight during adjustment! The required cabinet depth for installation depends on the mounting position: when used horizontally, it must be at least 180 mm, with vertical application 82 mm.

Attributes

Adjustment facility: Opening angle

Area of application: for wooden flaps

Color/ Finish cover: Black

Color/finish: Front fixing bracket: Nickel plated

Dimensions: for horizontal use: 26 x 68 x 160 mm (W x H x L)

For cabinet depth: ≥82 mm

For cabinet height: 210 – 480 mm

For lid weight: ≤9 kgnote sample measurements table

Installation: For screw fixing with Euro screws

Lid material: Wood

Material: Plastic

Model: C

Mounting: right and left hand use

Supplied with: Front fixing bracket Mounting material

Version: With pull cable

Resources

• CAD data
• Installation instructions
• Installation instructions for flap stay
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.161
