Hafele Door Straightening Fitting – Precision Architectural Hardware

Description

Hafele 405.35.300 Hawa Door Straightening Fitting

Hafele 405.35.300 Door Straightening Fitting, Hawa adds essential rigidity to sliding and pivoting doors, effectively preventing warping and twisting of doors and panels. Crafted from durable aluminum with a clear anodized finish, this fitting measures 1900 mm (74 31/16″) in length, making it suitable for door heights ranging from 1215 mm to 2850 mm (47 13/16″ to 112 3/16″). Designed for a door thickness of 16 mm to 50 mm, it is ideal for various applications, enhancing both functionality and aesthetics. The tensioning profile can be easily recessed and screwed in place, with an option for glue fixing, ensuring a secure installation. Adjustment is straightforward, utilizing pre-mounted hex screws that can be operated with an 8 mm (5/16″) open-ended wrench. For optimal performance, it is recommended to use two alignment fittings per door.Please note that this product is not suitable for hardwood. When used with lacquered panels, milling may be visible on the front, so consideration should be given to the finish of your doors. Each kit includes two door alignment fittings and all necessary components, except for the fastening screws for the tensioners and retaining plates. Enhance the longevity and straightness of your doors with this reliable fitting solution.

Door Straightening Fitting, Hawa

Adds rigidity and helps prevent warping and twisting of doors and panels, clear anodized, 1900 mm length (74 31/16″)

Prevents doors from warping and/or straightens warped doors
Tensioning profile is recessed and screwed in place (optionally it can be glued in place) Fitting is adjusted via the pre-mounted hex screws with an 8 mm (5/16″) open ended wrench

Two alignment fittings per door are recommended. Not suitable for hardwood. When using this product in combination with lacquered panels, please note that the milling may show on the front.

Attributes

Area of application: For sliding and pivoting doors

Color/finish: Clear anodized

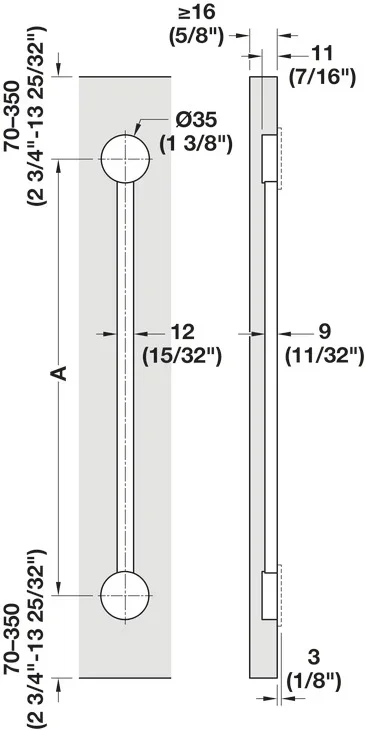

Dim. A: 1900 mm (74 13/16″)

Distance to cup: 1,900 mm

For door height: 1215 – 2,850 mm

For door height (inches): 47 13/16″–112 3/16″

For door thickness: 16 – 50 mm

Installation: For recess mounting and screw fixing (for glue fixing optional)

Material: Tensioning profile: Aluminum Tensioners and retaining plates: Plastic

Supplied with: Each kit consists of 2 door alignment fittings including all components except the fastening screws for the tensioners and the retaining plates

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.93B
