Description

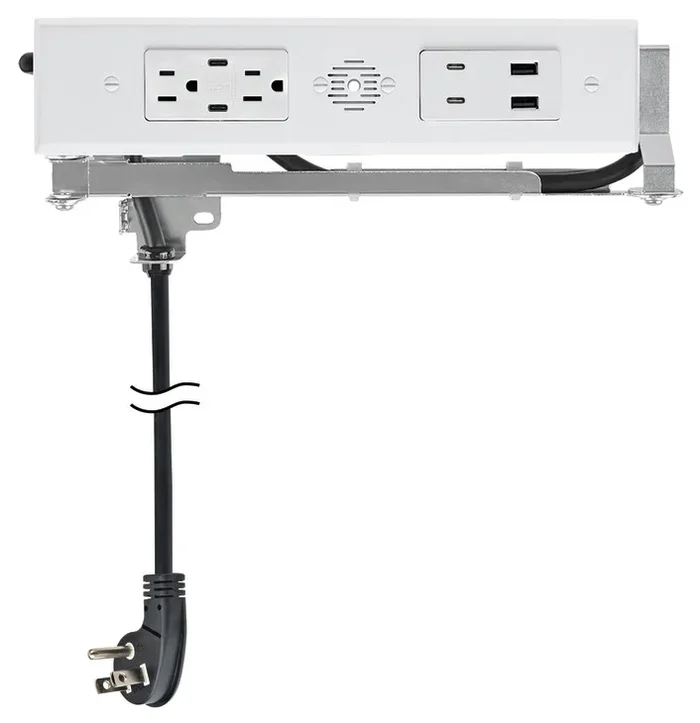

Hafele 822.53.477 Blade Duo 4 USB-C (PD) 30W, 2 USB-A Ports 2 x 15A AC Outlets
Hafele 822.53.477 Blade Duo with 4 x USB-C (PD) 30W, 2 x USB-A ports, and 2 x 15A AC outlets offers a versatile charging solution for modern living spaces. Featuring a sleek white finish, this model is designed for easy specification and installation, fitting seamlessly into cabinets with depths up to 610 mm (24″) and a minimum drawer box width of 380 mm (15″).This Docking Drawer unit allows you to keep devices plugged in, ready for use, and neatly stowed away. With its simplified electrical connection, every outlet plugs in effortlessly, ensuring hassle-free setup. The unit includes powerful 30W USB-C ports, capable of charging devices up to 70% faster than traditional USB-A ports, making it ideal for tablets and laptops. Safety is paramount, with an interlock thermostat that de-energizes the outlet if temperatures exceed 120°F, and an optional Safety Interlock Box that enhances protection during drawer operation. ETL listed for both U.S. and Canadian use, this unit combines style with functionality, making it perfect for residential and commercial installations alike. Connect up to eight devices and enjoy the convenience of fast, efficient charging with the Hafele Blade Duo.
Blade Duo with 4 x USB-C (PD) 30W, 2 x USB-A ports and 2 x 15A AC outlets
white, model 1514-238W
Docking Drawer Blade Duo and Blade feature one size for all outlets for easy specification and installation All outlets can charge & power all of your devices Simplified electrical connection; every outlet now just plugs in 15 amp solutions feature 14 AWG cord approved for residential and commercial installations, most other devices do not use this approved power cord Keep your devices plugged in, ready to use and neatly stowed Docking Drawer Project Packs available – For larger projects such as hotels, lockers, commercial installations, etc., Minimum order quantity is 100 pcs., Bulk packed and shipped to a single location Cabinet Specifications: Fits cabinet depths ≤610 mm (24″) with a minimum drawer box width (OD) ≥380 mm (15″) Minimum space behind drawer box: 51 mm (2″) Minimum interior drawer box height: 76 mm (3″)
1.37 m (4 1/2′) NEMA 5-15P power cord plugs into a NEMA 5-15R receptacle 15 amp outlets with 14 AWG cord approved for residential and commercial Installations Max rated current: 15 amps @ 120 VAC USB-C (Power Delivery): 3 amps @ 9 VDC” (30W) USB-A: 3.6 amps @ 5VDC or 4.2 amps @ 5VDC Interlock Thermostat de-energizes outlet when the surrounding temperature exceeds 120°F Optional Safety Interlock Box adds a limit switch that senses the drawer position and de-energizes the outlet when the drawer starts to close (Note: Safety Interlock Box is optional in the United States. Required in Canada to satisfy the requirements of the Canadian Electrical Code (CEC). ETL Listed for use in the US and Canada
Benefits of Docking Drawer series with USB-C with Power Delivery USB-C is the new USB standard that is maturing in the market Faster – USB-C (PD) can charge your device up to 70% faster than standard 12W charging found in USB-A ports. Therefore, your devices will need less time to reach a full charge. A quick 10-minute charge with USB-C (PD) might be all you need to get going. More Powerful – With up to 2X more power than typical USB ports, Docking Drawer with USB-C (PD) have up to 30W of power available and can charge larger devices like tablets and laptops with just a USB-C cable. Safer – Docking Drawer series with USB-C (PD) contain a smart chip which makes charging safer with 3 key features: 1) Recognizes and optimizes the charging requirements for each individual device and is especially designed to handle new higher levels of power. 2) Built-in overcurrent protection safely keeps devices from receiving too much power. 3) Features an internal thermoregulator to prevent electronics from overheating, which is not available for USB-A.
Attributes
Color/finish: White
Installation: Horizontally or vertically, left or right Works with side-mount, under-mount and soft closing slides A standard 15 amp household outlet is needed, and will need to be within 4 1/2’ of cabinet
Material: Metal, Plastic and Electrical Components
Version: 4 x USB-C (PD) 30W, 2 x USB-A ports and 2 x 15A AC outlets 30W USB-C for fast charging Connect up to 8 devices
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.6
