Grass Maxcess Undermount Slide – Full Access, 75 lbs – Hafele

Description

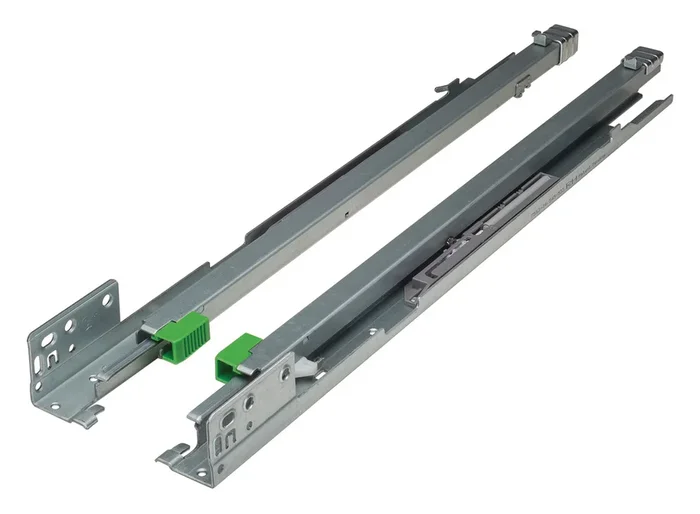

Hafele 433.30.100 Grass Maxcess Undermount Slide, Full Access, 75 lbs Capacity

Hafele 433.30.100 Grass Maxcess Undermount Slide offers a remarkable combination of durability and smooth operation, designed for full access with a load-bearing capacity of up to 75 lbs. This undermount slide features a 9″ length and is crafted from high-quality zinc-plated steel, ensuring longevity and resistance to wear. Equipped with an integrated soft-close liquid damper, this slide guarantees a gentle and controlled closing motion, enhancing the overall user experience while minimizing noise. The self-latching front locking devices are designed for easy drawer removal, featuring convenient release levers. Additionally, the front locking device allows for height adjustment of up to 2.5 mm (3/32″), providing flexibility during installation. Ideal for face frame undermount applications, the Grass Maxcess slide requires a minimum installation depth of 10 3/4 inches, making it suitable for a range of cabinet designs. This product meets or exceeds ANSI/BHMA Grade 1 testing requirements, ensuring it stands up to rigorous use. With a package containing five slides, the Hafele 433.30.100 is perfect for both professional builders and discerning homeowners looking to enhance their cabinetry with reliable and efficient hardware. Experience the difference in quality and functionality with Hafele’s exceptional slide systems.

Grass – Undermount Slide, Maxcess, Full Access, 75 lbs.

9″ length, 5 count

Integrated soft close liquid damper Self latching front locking devices have easy release levers for drawer removal Front locking device is height adjustable 2.5 mm (3/32″) Meets or exceeds ANSI/BHMA Grade 1 testing requirements

Attributes

Adjustment facility: Height adjustment + 2.5 mm

Color/finish: Zinc plated

Comfort functions opening/closing: Soft close fluid damped

Drawer length: 9″

Installation: Face Frame Undermount

Installation depth min. (inches): 10 3/4″

Load bearing capacity: 35.00 kg

Material: Steel

Model: 7513-16/256/229

Model series: Grass Maxcess

Mounting: Face Frame Undermount
