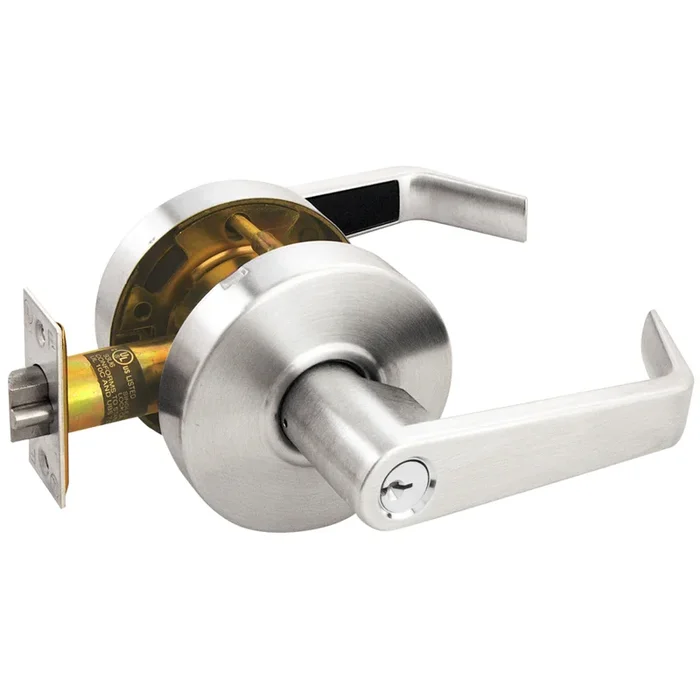

Arrow Lock RL12-SR-26 Grade 2 Storeroom Lever Lock
Arrow RL12-SR-26 Grade 2 Storeroom Lever delivers reliable security and convenience for various applications. Designed with a Sierra lever and finished in bright chrome, this Grade 2 cylindrical lockset is an excellent choice for multi-family housing and light commercial environments. The non-handed design allows for easy installation, accommodating door thicknesses from 1-3/8″ to 1-3/4″. Constructed from cold-rolled steel with a zinc dichromate finish, the RL12-SR-26 is built to withstand corrosion, ensuring longevity. This lock features a solid brass 6-pin conventional cylinder with an Arrow “A” keyway, providing enhanced security. The latch boasts a UL-listed, guarded latchbolt with a 1/2″ throw, while the removable through bolts make installation straightforward. With a 4-7/8″ ANSI strike and various backset options (2-3/8″ or 2-3/4″), this lockset is versatile enough for numerous door configurations. The pressure cast zinc lever and wrought brass rose provide both durability and style, with a total projection of 2-1/2″ from the door face. Backed by a five-year mechanical warranty, the Arrow RL12-SR-26 is a smart investment for those seeking a dependable and efficient locking solution.
Grade 2 Storeroom Lever
Grade 2 Storeroom Cylindrical Lock, Sierra Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed
The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
The RL Series offers removable through bolts and a wide variety of design.
The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8″ (53.97mm) bore through door.
- Backset – 2-3/8″ (60.31mm) or 2-3/4″ (69.85mm)
- Door Thickness – Fits 1-3/8″ (34.93mm) to 1-3/4″ (44.45mm) doors standard.
- Latch – Brass 1/2″ (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1″ x 2-1/4″ (25.40mm x 57.15mm) for 2-3/8″ backset (60.32.mm) or 1-1/8″ x 2-1/4″ for 2-3/4″ (69.85mm) backset.
- Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4″ (120.65mm) in length. RL Roses are wrought brass 3-3/8″ (85.73mm) diameter. Total projection from face of door is 2-1/2″ (63.5mm).
- Strike – 4-7/8″ ANSI (123.83mm), 2-3/4″ (69.85mm) T strike, or 2-1/4″ (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow “A” keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys Handing – Non-handed
- Thru-bolts – Removable thru-bolts standard on RL Series
- Packaging – 10 per case
- Warranty – Five Year Mechanical Warranty
Attributes
Ansi: F86
Ansi Function: F86 – Storeroom
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 7-1/4″
Box Height Fraction: 3-3/4″
Box Width Fraction: 6-3/4″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8″ to 1-3/4″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 12-Storeroom
Function Family: Classroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8″
Lever Knob: Lever
Lever Knob Design Name: Sierra
Leverknob Design: SR – Sierra Lever
Leverknob Design Family: Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Classroom
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Of Keys: 2
Origin: Taiwan
Pack Height: 3.75″
Pack Length: 7.25″
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75″
Pins: 6
Product Height: 3.75″
Product Length: 7.25″
Product Width: 6.75″
Projection: 2-7/16″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8″ Rose Diameter
Roseescutcheon Dimensions: 3-3/8″
Screws: Wood/Machine Screws
Series: RL Series Grade 2 Cylindrical Lever Locks
Ship Weight: 3.4 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: R71
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: R62
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Resources
- Arrow RL Series Catalog
- RK & RL Series Template
- RL Series Grade 2 Cylindrical Lever Locks Cut Sheet
- RL Series Instructions
