Grade 2 Single Dummy Lock by BEST – Electrical and Mechanical Door Hardware

Description

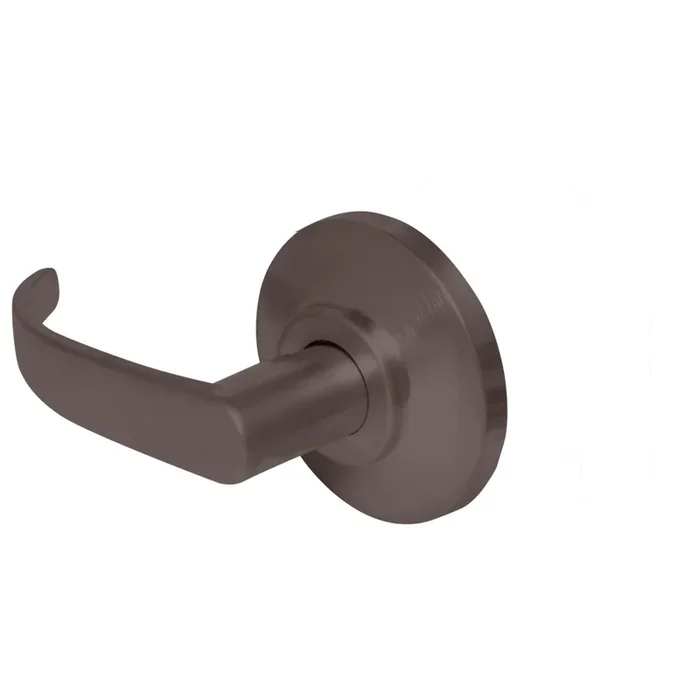

Best 7KC01DT14D613 Grade 2 Single Dummy Lock

BEST 7KC01DT14D613 Grade 2 Single Dummy Lock offers a reliable solution for both commercial and residential applications, combining quality and style in one package. This Grade 2 single dummy cylindrical lock features a sleek oil-rubbed bronze finish and a non-handed design, making it versatile for various door configurations. Certified by Underwriters Laboratories, the 7KC01DT14D613 is suitable for use on 3-hour, A label single swinging doors (up to 4′ x 8′), ensuring compliance with stringent industry standards. Its quick rekeying capability with BEST interchangeable cores enhances security and convenience, while the ADA compliance guarantees accessibility for all users. The lock features a 5 1/4″ long handle with a return and a durable zinc base, plated to match the finish. Its 1/2″ throw deadlocking latch provides added security, and the cylindrical chassis fits standard door preparation. With a backset of 2 3/8″ or 2 3/4″, it accommodates doors with a thickness ranging from 1 3/8″ to 2″. Ideal for high-traffic areas, the BEST 7KC01DT14D613 combines functionality with aesthetic appeal, making it an excellent choice for those seeking dependable door hardware.

Grade 2 Single Dummy Lock

Grade 2 Single Dummy Cylindrical Lock, 14 Lever, Non-Keyed, Oil-Rubbed Bronze Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4′ x 8′ ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8″ for 72KC Series; 2 3/4″ for 73KC Series; 3 3/4″ for 74KC Series; 5″ for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2″ throw deadlocking latch. Front: 2 1/4″ x 1 1/8″ x 5/32″ standard for 2 3/4″ backset; 2 1/4″ x 1″ x 5/32″ for 2 3/8″ backset.
• Lever– 5 1/4″ long handle with return. Projection on door 2 1/2″. Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8″ diameter bore for lock housing, 1″ diameter for latch tube.
• Rose– D– 3 1/2″ diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4″ x 11/8″ with curved lip & box. (ANSI A115.2 for 1 3/8″ doors). S3– 4 7/8″ x 1 1/4″ with curved lip & box. (ANSI A115.2 for 1 3/4″ doors).
• Door thickness– 1 3/8″ to 2″ .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.

Attributes

Manufacturer surcharge: 7.0%

Accessible: Yes

Ada Compliance: Yes

Base Material: Bronze

Box Depth Fraction: 8-1/4″

Box Height Fraction: 4″

Box Width Fraction: 6-5/8″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: Taiwan

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Door Thickness: 1-3/8″ to 2″

Finish: 613/US10B

Finish Family: Dark Bronze

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 1DT-Single Dummy Trim

Function Family: Dummy

Grade: Grade 2

Handing: Non-handed

Installation: Commercial

Lever Knob: Lever

Lever Knob Design Name: 14

Leverknob Design: 14 Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 3 Year Warranty

Manufacturer Function: Single Dummy

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/8″

Origin: Taiwan

Pack Height: 4″

Pack Height 2: 8.75″

Pack Length: 8.25″

Pack Length 2: 20.5″

Pack Qty: 1

Pack Volume: 218.63 in³

Pack Volume 2: 2242.19 in³

Pack Width: 6.63″

Pack Width 2: 12.5″

Product Height: 4″

Product Length: 8.25″

Product Width: 6.63″

Projection: 2-1/2″

Rose Escutcheon: Rose

Roseescutcheon Design: 3-1/2″ Rose Diameter

Roseescutcheon Dimensions: 3-1/2″

Screws: Wood/Machine Screws

Series: 7KC Series Grade 2 Cylindrical Lever Locks

Ship Weight: 3.6 lbs.

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 9

Upc: 8.97839E+11

Resources

• 7KC Sell Sheet
• 7KC Series Grade 2 Cylindrical Lever Locks Cut Sheet
• 7KC Series Service Manual
• Cylindrical Installation Instructions
• Cylindrical Locks – 7KC Series Catalog
• Installation Instructions for 72KC-75KC Cylindrical Locks
• Installation Instructions for 72KC-75KC Key-in-Knob Cylinders
• Installation Instructions for 7K Cylindrical Locks
• Installation Instructions for 7K Dummy Trims
• Installation Instructions for 7KC 1DT 9K 1DT 2DT Dummy Trim Assemblies
