Grade 2 Single Cyl Deadlatch by Schlage

Description

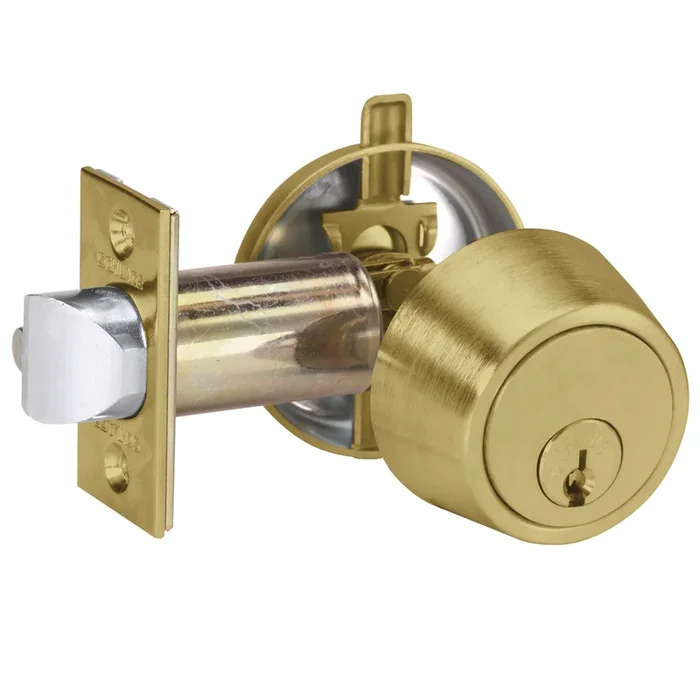

Schlage B250P6 606 Grade 2 Single Cylinder Deadlatch

Schlage B250P6 606 Grade 2 Single Cylinder Deadlatch offers a robust solution for commercial applications requiring reliable security. This Grade 2 deadlatch features a conventional 6-pin cylinder and is designed with a 2-3/8″ backset, making it suitable for various installations, including storage cupboards, utility panels, and non-fire rated service ducts. It is also adaptable for fire-rated duct doors when paired with a B160 Rose & Turn. The B250 Series is known for its durability and effectiveness, boasting a 9/16″ throw that resists pry-in attacks and shimming. Precision-engineered brass construction, equipped with phosphor bronze springs and nickel silver pins, ensures smooth operation and long-lasting performance. The tough nickel silver keys further enhance its reliability. Additional features include an exclusive concealed wood frame reinforcer that protects against kick-in attacks and a reinforced cylinder collar to resist wrenching and prying. The thumbturn “holdback” feature allows the deadlatch to be retained in a retracted position when necessary. With a limited warranty of 10 years, the Schlage B250P6 provides peace of mind and security for properties, making it a trusted choice for building professionals and knowledgeable homeowners alike.

Grade 2 Single Cyl Deadlatch

Grade 2 Single Cylinder Deadlatch, Conventional 6-Pin Cylinder, 2-3/8″ Backset, Satin Brass Finish

The B250 Series is a range of deadlatches designed for commercial applications. The B250 Series is ideally suited for storage cupboards and non-fire rated service ducts. The B250 is suitable for fire rated duct doors when fitted with a B160 Rose & Turn.

Ideal for pool, apartment and condominium gates, utility panels and pipe chases.

Tough and reliable, the Schlage B250 Series has been considered the industry standard for tubular deadlatches for decades.Accepts Primus XP access control cylinder, Primus UL437 Listed high security cylinder, full size interchangeable core cylinder and Primus interchangeable core cylinder.

• 9⁄16″ (14 mm) throw deadlatch resists pry-in attacks and “shimming” of the latch
• Precision-built brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
• Tough nickel silver keys for smooth, long-lasting operation
• Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
• Cylinder collar reinforced with security inserts to resist wrenching and prying
• Thumbturn “holdback” feature retains the deadlatch in a retracted position when desired

Attributes

Manufacturer surcharge: 4.5%

Ansi Function: E0122 – Single Cylinder Deadlatch

Bolt Projection: 1/2″ Latch

Commercial Residential: Commercial

Cylinder Type: Conventional 6-Pin Cylinder

Door Thickness: 1-1/2″ – 2-1/8″

Dust Box: Plastic

Finish: 606/US4

Finish Family: Matte Brass

Function: 250-Single Cylinder Deadlatch

Grade: Grade 2

Installation: Commercial

Limited Warranty: 10 Years

Lock Face Size: 2-1/4″ x 1-1/8″

Pack Height: 3″

Pack Length: 5.75″

Pack Qty: 1

Pack Width: 4.5″

Pbs Options: 4542184

Series: B250 Series Deadbolts

Ship Weight: 2 lbs.

Std Latch Backset Dim: 2-3/8″

Std Latch Number: 12-100

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 2-3/4″

Std Strike Number: 10-001

Std Strike Type: T-Square Corner

Std Strike Width: 1-1/8″

Subtype: Deadbolts

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• B-Series Single Cylinder Lock Installation Instructions
• B250 Series Deadbolts Cut Sheet
• B250, B252 Series Door Template
• Schlage B Series Service Manual
• Von Duprin Finishes Chart
