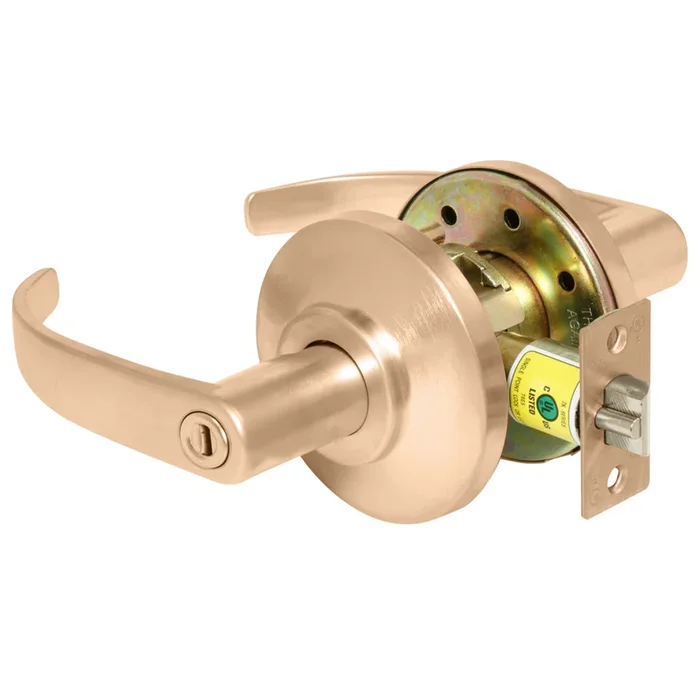

Best 7KC30L14DS3612 Grade 2 Privacy Lock
BEST 7KC30L14DS3612 Grade 2 Privacy Lock offers a robust solution for privacy needs in commercial settings. This Grade 2 cylindrical lock features a sleek satin bronze finish, ensuring both durability and aesthetic appeal. Designed for non-handed installation, the lock fits doors ranging from 1 3/8″ to 2″ thick, making it versatile for various applications. Certified by Underwriters Laboratories for use on 3-hour fire-rated doors, the 7KC series is noted for its quick rekeying capability with BEST interchangeable cores. This feature streamlines access management while maintaining security. The 14 lever design, with its 5 1/4″ long handle, provides ease of use, and the 1/2″ throw deadlocking latch enhances security. The lock complies with ANSI A156.3, Grade 2, and meets ADA requirements, ensuring accessibility for all users. It includes a 3 1/2″ diameter rose with concealed mounting screws for a clean installation. Additionally, its durable construction utilizes brass, bronze, and zinc materials, ensuring longevity. With a limited 3-year warranty, the BEST 7KC30L14DS3612 is an ideal choice for those seeking reliable privacy locks in commercial environments, combining functionality and style seamlessly.
Grade 2 Privacy Lock
Grade 2 Privacy Cylindrical Lock, 14 Lever, Non-Keyed, Satin Bronze Finish, Non-handed
7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4′ x 8′ ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.
The 7KC Series has very versatile trims and has several finishes available too it your needs.
The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.
- Backset– 2 3/8″ for 72KC Series; 2 3/4″ for 73KC Series; 3 3/4″ for 74KC Series; 5″ for 75KC Series.
- Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
- Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch– 1/2″ throw deadlocking latch. Front: 2 1/4″ x 1 1/8″ x 5/32″ standard for 2 3/4″ backset; 2 1/4″ x 1″ x 5/32″ for 2 3/8″ backset.
- Lever– 5 1/4″ long handle with return. Projection on door 2 1/2″. Zinc base, plated to match finish.
- Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting– 2 1/8″ diameter bore for lock housing, 1″ diameter for latch tube.
- Rose– D– 3 1/2″ diameter mounting screws concealed.
- Strike– STK (standard)– 2 3/4″ x 11/8″ with curved lip & box. (ANSI A115.2 for 1 3/8″ doors). S3– 4 7/8″ x 1 1/4″ with curved lip & box. (ANSI A115.2 for 1 3/4″ doors).
- Door thickness– 1 3/8″ to 2″ .
NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
Attributes
Manufacturer surcharge: 7.0%
Accessible: Yes
Ada Compliance: Yes
Ansi: F76
Ansi Function: F76 – Privacy
Base Material: Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4″
Box Width Fraction: 6-5/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/8″ to 2″
Dust Box: Plastic
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Privacy
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/8″
Origin: Taiwan
Pack Height: 4″
Pack Height 2: 8.75″
Pack Length: 8.25″
Pack Length 2: 20.5″
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63″
Pack Width 2: 12.5″
Product Height: 4″
Product Length: 8.25″
Product Width: 6.63″
Projection: 2-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 7KC Series Grade 2 Cylindrical Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
