Grade 2 Passage Orbit Knob 2-3/4in Backset – Schlage Lock Company

Description

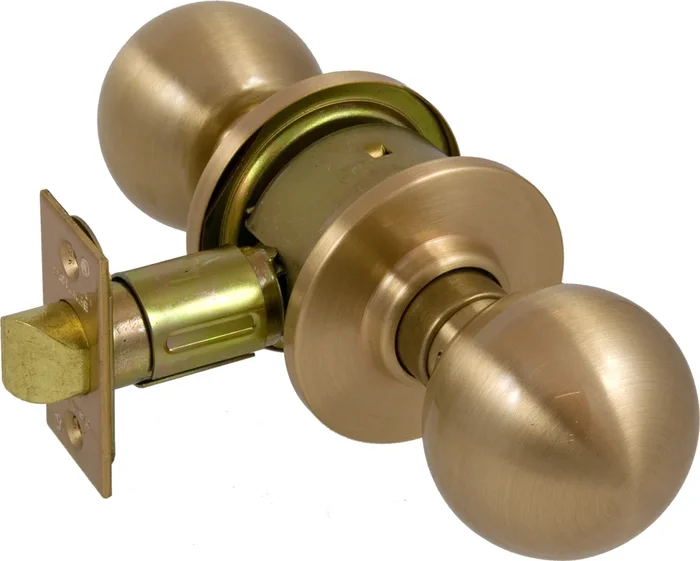

Schlage A10S-ORB-612 2-3/4 BS T-STRIKE Grade 2 Passage Orbit Knob 2-3/4″ Backset, T-Strike, Satin Bronze

Schlage Lock Company A10S-ORB-612 2-3/4 BS T-STRIKE Grade 2 Passage Orbit Knob offers a blend of classic design and modern security features, making it a reliable choice for both commercial and residential applications. This Grade 2 cylindrical lock exceeds ANSI/BHMA standards and is UL listed for a 3-hour fire door, ensuring durability and safety. Crafted from steel and zinc dichromate plated for corrosion resistance, the A10S-ORB-612 features a key-removable knob for easy rekeying or cylinder replacement. The patented Everest 29 S123 keyway enhances security by preventing unauthorized key duplication, with additional options available for advanced key control.With a 2-3/4 inch backset, this lock accommodates doors ranging from 1 3/8″ to 2 3/4″ in thickness and offers numerous latch and strike options to fit any opening. The orbit knob design is not only functional but adds an aesthetic appeal, complemented by the elegant satin bronze finish.Every Schlage lock undergoes rigorous testing to meet ANSI grade levels, ensuring you receive a product that stands the test of time. Choose the A10S-ORB-612 for a dependable locking solution that marries style, security, and superior performance.

Grade 2 Passage Orbit Knob 2-3/4in Backset (11-116). T-Strike (10-001), 612/US10 Satin Bronze

Notice: The info below is not item specific.

The A series cylindrical lock is based on Schlage’s earliest designs. It is a tribute to enduring quality that these locks remain in demand today. As a grade 2 commercial lock it exceeds ANSI/BHMA standards, allowing it to be used in a wide range of commercial and residential applications.

Features:

• Exceeds ANSI/BHMA grade 2 operational and security standards
• UL listed for 3-hour fire door
• Key removable knob for quick rekeying or cylinder replacement
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Available in three knob and one lever style
• Snap on rose eliminates exposed screws on inside levers
• Seven available finishes
• Ten keyed and non-keyed functions
• Numerous latch and strike options to accommodate any opening
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Specifications:

• Material: Steel, zinc dichromate plated for corrosion resistance
• Handing: Keyed functions are reversible. Non-keyed functions are not handed.
• Door Thickness:
• Standard: 1 3⁄8″ to 1 7⁄8″ (35 mm to 48 mm)
• Optional: 2″ (51 mm) to 2 1⁄2″ (64 mm), extended inside
• Trim:
• Lever: Pressure cast zinc, plated to match finish symbols
• Rose: Wrought brass, bronze or stainless steel
• Latch: Backset: Standard: 2 3⁄8″ (60 mm). Optional: 2 3⁄4″ (70 mm), 3 3⁄4″ (95 mm) and 5″ (127 mm)
• Faceplate: Standard: 1 1⁄8″ x 2 1⁄4″ square corner, beveled. Optional: 1″ square corner, 1″ radius corner, and non-UL drive-in/round face
• Latch: Brass, chrome plated, 1⁄2″ throw, deadlocking on keyed and exterior functions.
• Strike: T-strike 1 1⁄8″ x 2 3⁄4″ (29 mm x 70 mm) x 1 1⁄8″ (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
• Cylinder format: 6-pin Conventional (standard); also available in FSIC and 7-pin SL cylinder
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying
• Certifications: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Knob and Lever Styles:

• GEO: Georgian Knob – Width: 2 1⁄8″. Projection: 2 5⁄16″
• PLY: Plymouth Knob – Width: 2 1⁄8″. Projection: 2 5⁄16″
• ORB: Orbit Knob – Width: 2 1⁄8″. Projection: 2 7⁄8″
• TUL: Tulip Knob – Width: 2″. Projection: 2 5⁄8″
• LEV: Levon Lever – Width: 3 3⁄32″. Projection: 3 3⁄16″
• Rose Standard: Diameter: 2 9⁄16″

Non-Keyed Functions:

• A10:
• ANSI F75
• Passage latch
• Both knobs always unlocked
• A25:
• Exit lock
• Blank plate outside
• Inside knob is always unlocked
• Specify door thickness
• A30:
• ANSI F77
• Patio lock
• Push-button locking
• Turn inside knob or close door to release button and prevent lock-out
• A40:
• ANSI F76
• Bath/bedroom privacy lock
• Push-button locking
• Can be opened from outside with small screwdriver
• Turn inside knob or close door to release button
• A43:
• ANSI F79
• Communicating lock
• Turn-button in outer knob locks and unlocks knob and inside thumbturn
• A170:
• Single dummy trim
• Dummy trim for one side of door
• Used for door pull or as matching inactive trim

Keyed Functions:

• A53:
• ANSI F109
• Entrance lock
• Turn/push-button locking: pushing and turning button locks the outside knob, requiring use of a key until button is manually unlocked
• Push-button locking: pushing button locks outside knob until it is unlocked by key or by turning the inside knob
• A70:
• ANSI F84
• Classroom lock
• Outside knob is locked and unlocked by key
• Inside knob is always unlocked
• A79:
• Communicating lock with blank plate
• Locked or unlocked by key from outside
• Blank plate inside
• A80:
• ANSI F86
• Storeroom lock
• Outside knob is fixed
• Entrance by key only
• Inside knob always unlocked
• A85:
• ANSI F93
• Faculty restroom lock
• Outside knob is fixed
• Entrance by key only
• Push-button on inside knob activates visual occupancy indicator, allowing only the emergency master key to operate
• Rotation of inside spanner button provides lock-out feature by keeping indicator thrown

Cylinders:

• Conventional Cylinder:
• P: Conventional, 6-pin keyed 5
• Z: SL 7-pin Conventional (A2 pinning)
• L: Less Conventional, 6-pin
• Full size interchangeable core (FSIC):
• R: 6-pin FSIC
• M :SL 7-pin FSIC (A2 pinning)
• J: Less FSIC
• T: Refundable FSIC construction core

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 629 – Bright stainless steel
• 630 – Satin stainless steel
• 643E – Aged bronze

Attributes

Alternate Codes: 118148, 210831, A10SORB612-2 3/4 BS, A10SORB612234BS, A10S-ORB-612 2-3/4 BS T-STRIKE, A10SORB612-2 3/4 BS T-STRIKE, A10SORB612234BSTSTRIKE, A10SORB612-34, A10SORB61234, A10SORB612-38, A10SORB61238, MK01BD10, SCHA10SORB612-2 3/4 BS, SCHA10SORB612-2 3/4 BS

Backset: 2-3/4″

Category: Commercial Locks, Cylindrical Knobs, Lock Sets

Door Application: Cylindrical Knobs

Door Thickness: 1-3/8″-2-3/4″

Faceplate Style: Round Corner, Square Corner

Faceplate Width: 1″, 1-1/8″

Finish Code: 612

Finish Color: Satin Bronze

Function: Passage

Knob Design: Schlage Orbit

Latchbolt Type: Springlatch

Manufacturer: Schlage Lock Company

Series: A

Strike Type: T-Strike
