Grade 2 Entry/Office Lock by Yale – Durable and Secure Locking Solution

Description

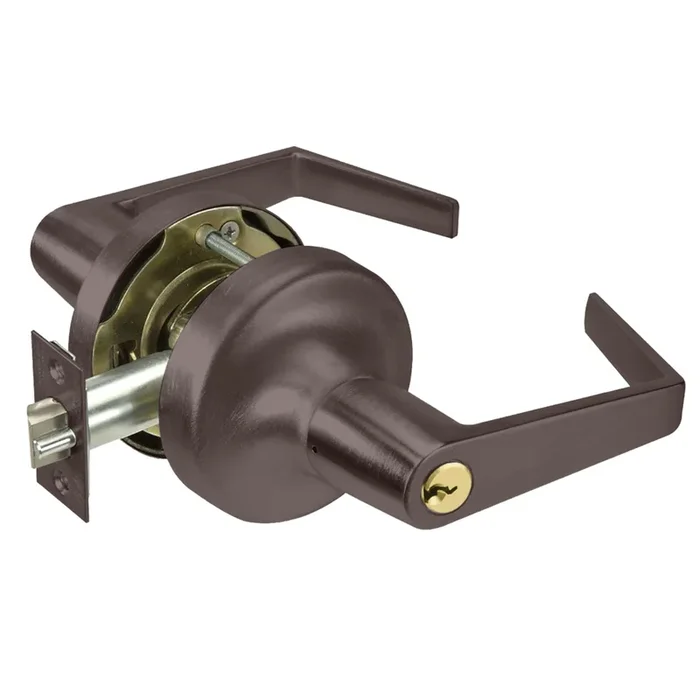

Yale AU5307LN 613E Grade 2 Entry/Office Lock

Yale AU5307LN 613E Grade 2 Entry/Office Lock combines functionality and style to enhance the security of any commercial space. This Grade 2 cylindrical lockset features an Augusta lever design and a durable dark oxidized bronze finish that seamlessly integrates with various decors. Designed for easy installation, it accommodates adjustable door thicknesses from 1-3/4″ to 2″, with special order options for 1-3/8″ and 2-1/4″.The innovative vandal-resistant Free Wheeling lever mechanism prevents tampering, while through-bolting ensures a secure fit that minimizes shaking and rattling. With 19 mechanical functions and 4 electrified options, this lockset caters to diverse security needs. The 3-1/2″ rose covers comply with ANSI/BHMA door prep standards, making it compatible with existing hardware. Yale offers a variety of keying options, including standard and interchangeable core cylinders, allowing for flexibility and enhanced security. The lockset comes with a lifetime warranty against lever sag and spring breakage, reflecting its durability and quality. Weighing just 4.8 lbs and UL Listed, the Yale AU5307LN is a reliable choice for professionals seeking a robust locking solution for their projects.

Grade 2 Entry/Office Lock

Grade 2 Entry Cylindrical Lock, Augusta Lever, Conventional Cylinder, Dark Oxidized Bronze Finish, Non-handed

This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.

The 5300LN Series is a revolutionary Grade 2 cylindrical lockset.

The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.

• Free Wheeling lever mechanism for increased vandal resistance

• 13 finish options

• 3 lever designs

• 19 mechanical functions, 4 electrified

• Adjustable door thickness: (Patent #6,131,970) – Preset at factory for 1-3/4″ (44mm) to 2″ (51mm) – Special order available for 1-3/8″ (35mm), 2-1/4″ (57mm)

• 3-1/2″ rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”

• Through-bolts solidly through the door, providing greater stability

• Wide range of Yale® 6-pin cylinder options: – Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)

• Competitive keying options: – Standard cylinders with Schlage® C and Sargent® LA keyways – Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® – Levers which accept standard cylinders by Schlage®

• Lifetime warranty against lever sag and lever spring breakage

Attributes

Ansi: F109

Ansi Function: F109 – Entry/Office

Base Material: Bronze

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 10″

Box Height Fraction: 3-3/4″

Box Width Fraction: 7-1/2″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: United States

Cylinder Type: Conventional Cylinder

Cylinders Present: Single Cylinder

Door Thickness: 1-3/4″ to 2″

Finish: 613E/US10BE

Finish Family: Dark Bronze

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 07-Entry Lock

Function Family: Entrance/Office

Grade: Grade 2

Handing: Non-handed

Installation: Commercial

Keys: Cut

Latch Bore Diameter: 7/8″

Lever Knob: Lever

Lever Knob Design Name: Augusta

Leverknob Design: AU – Augusta Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 5 Year Warranty

Lock Face Size: 1-1/8″ x 2-1/4″

Manufacturer Function: Entry

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/4″

Of Keys: 2

Origin: United States

Pack Height: 3.75″

Pack Length: 10″

Pack Qty: 1

Pack Volume: 281.25 in³

Pack Width: 7.5″

Pins: 6

Product Height: 3.75″

Product Length: 10″

Product Width: 7.5″

Projection: 3-1/2″

Rose Escutcheon: Rose

Roseescutcheon Design: 3-1/2″ Rose Diameter

Roseescutcheon Dimensions: 3-1/2″

Screws: Wood/Machine Screws

Series: 5300LN Grade 2 Cylindrical Lever Locks

Ship Weight: 4.8 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 380AN

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 497

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike Dimensions: 1-1/4″ x 4-7/8″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Resources

• 5300LN Grade 2 Cylindrical Lever Locks Cut Sheet
• 5300LN Grade 2 or 4700LN Grade 1 Cylindrical Lever Locks Installation Instructions
• 5300LN Series Grade 2 Cylindrical Lever Locks Catalog
• Electrified Wiring Instructions 5390LN/5391LN and 4790LN/4791LN
