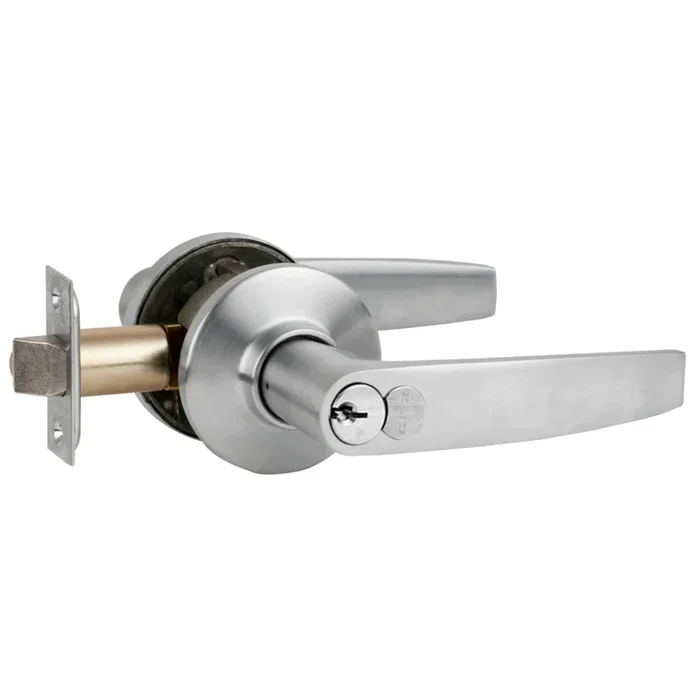

Grade 2 Entrance Lock by Schlage – Durable Door Security Hardware

Description

Schlage S51RDJUP626 S Series Entry C Keyway Large Format Jupiter with 16-203 Latch 10-001 Strike Satin Chrome Finish

Schlage Commercial S51RDJUP626 S Series Entry C Keyway Large Format Jupiter with 16-203 Latch 10-001 Strike Satin Chrome Finish

• Entrance, Outside Lever Locked and Unlocked By Key or By Thumbturn Inside, Inside Lever Always Unlocked for Immediate Egress Turning Inside Lever Does Not Unlock Outside Lever
• ANSI/BHMA Certified A156.2-2011
• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2, Series 4000, Grade 2

Ansi Function: F81 – Apartment/Corridor

Ansi Function : Apartment/Corridor

Baa Qualified: Yes

Backset: Adjustable Backset

Bolt Projection: 1/2″

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 9-1/2″

Box Height Fraction: 4-3/4″

Box Width Fraction: 8-1/4″

Burglar Rated: No

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Schlage FSIC Core

Cylinders Present: Single Cylinder

Design: Jupiter

Door Thickness: 1-3/8″ to 2″

Finish: Satin Chrome

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 51-Entrance Lock

Function Family: Entrance

Grade: Grade 2

Hand: Non-handed

Handing: Non-handed

Installation: Commercial

Keying: 1 Bitted

Keys: Cut

Latch Backset Dim: 2-3/8″ – 2-3/4″

Latch Bore Diameter: 7/8″

Latch Number: 16-203

Latch Type: Square Corner Deadlatch

Lever Knob: Lever

Lever Knob Design: JUP – Jupiter Lever

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: Jupiter

Leverknob Design: JUP – Jupiter Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 3 Years

Lock Face Size: 1″ x 2-1/4″

Manufacturer Function: Entrance Lock

Manufacturer Function : Outside lever locked and unlocked by key or by thumbturn inside. Inside lever always unlocked for immediate egress. Turning inside lever does not unlock outside lever.

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/8″

Num Of Keys: 2

Num Pins: 6

Of Keys: 2

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Pbs Options: 4540296

Pins: 6

Projection: 2-1/2″

Restrictions: None

Rose Escutcheon: Rose

Rose Escutcheon Design: 2-1/2″ Rose Diameter

Rose Escutcheon Dimensions: 2-1/2″

Roseescutcheon Design: 2-1/2″ Rose Diameter

Roseescutcheon Dimensions: 2-9/16″

Screws: Wood/Metal Screws

Series: S Series

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/8″ – 2-3/4″

Std Latch Number: 16-203

Std Latch Type: Square Corner Deadlatch

Std Strike Height: 2-3/4″

Std Strike Number: 10-001

Std Strike Type: T-Strike

Std Strike Width: 1-1/8″

Strike: T Strike

Strike Dimensions: 1-1/8″ x 2-3/4″

Strike Height: 2-3/4″

Strike Number: 10-001

Strike Type: T-Strike

Strike Width: 1-1/8″

Structure Cylinder: R

Structure Function: 51

Structure Latch: D

Structure Latch Number: 16-203

Structure Outside Finish: 626

Structure Outside Trim: JUP

Structure Series: S

Structure Strike Number: 10-001

Subtype: Tubular

Type: Mechanical Commercial Locksets

Ul Listing: UL/cUL

Unit of Measure: Each

Upc: 043156942848

Resources

• 10-001, 10-013, 10-016, 10-019 Strikes, Metal Template
• 10-001, 10-013, 10-016, 10-019 Strikes, Metal Template
• 10-001, 10-013, 10-016, 10-019 Strikes, Wood Template
• 10-001, 10-013, 10-016, 10-019 Strikes, Wood Template
• 10-025, 10-072, 10-087 Strikes, Metal Door Jamb Template
• 10-025, 10-072, 10-087 Strikes, Metal Door Jamb Template
• 10-025, 10-072, 10-087 Strikes, Wood Door Jamb Template
• 10-025, 10-072, 10-087 Strikes, Wood Door Jamb Template
• 10-027 Strike, Wood Door Jamb Template
• 10-027 Strike, Wood Door Jamb Template
• 2020 Schlage Multi-Family Price Book
• 2020 Schlage Price Book
• AL Series Product Catalog
• ALX Series Product Catalog
• B Series Product Catalog
• B250 Series Product Catalog
• HL Series Product Catalog
• L Series Product Catalog
• ND Series Product Catalog
• S Series Installation Guide
• S Series Installation Guide
• S Series Tubular Lever Locks Cut Sheet
• S Series and S200 Series Product Catalog
• Von Duprin Finishes Chart
