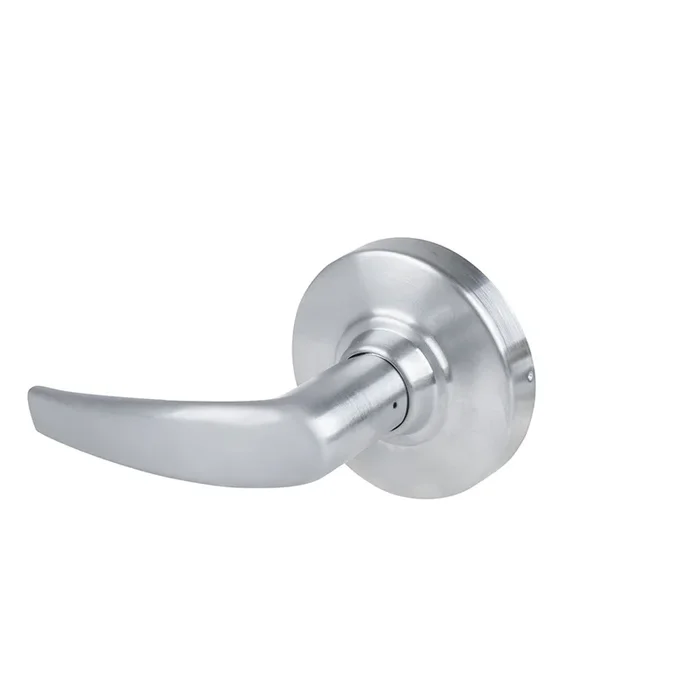

Grade 2 Double Dummy Trim by Schlage – Premium Door Hardware

Description

Schlage ALX172 ATH 626 Lock Cylindrical Lock

• Double Dummy – Dummy Trim for Both Sides of Door
• ANSI/BHMA Certified A156.2
• 1-3/8″ to 1-3/4″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.2-2011 Series 4000, Grade 2

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Design: Athens Lever

Dimension: 4-9/16″ Lever with 3-5/16″ Projection and 3-7/16″ Rose

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8″ to 1-3/4″

Finish: Satin Chrome

Finish Code: 626

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: Yes {Variable}

Fire Rating: 3 Hours {A}

Function: 172-Double Dummy Trim

Function Family: Dummy

Grade: Grade 2

Hand: Not Handed

Handing: Non-handed

Hazardous Material: NO

Installation: Commercial

Lever Knob: Lever

Lever Knob Design: ATH – Athens

Lever Knob Design Family: Straight Lever

Lever Knob Design Name: Athens

Leverknob Design: ATH – Athens Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 10 Years

Manufacturer Function: Double Dummy Trim

Manufacturer Function : No key; rigid, plain lever both sides; no latch

Manufacturer Warranty: 10 Year Limited Warranty

Material: Steel, Zinc Dichromated

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/8″

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Product Height: 4.5″

Product Length: 9.25″

Product Width: 8.13″

Projection: 3-5/16″

Restrictions: None

Rose Escutcheon: Rose

Rose Escutcheon Design: RHO – Rhodes

Rose Escutcheon Dimensions: 3-7/16″

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: Rhodes

Screws: Wood/Metal Screws

Series: ALX Series

Ship Weight: 5 lbs.

Structure Function: 172

Structure Outside Finish: 626

Structure Outside Trim: ATH

Structure Series: ALX

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each
