Grade 2 Classroom Lock by Schlage – Durable Door Security

Description

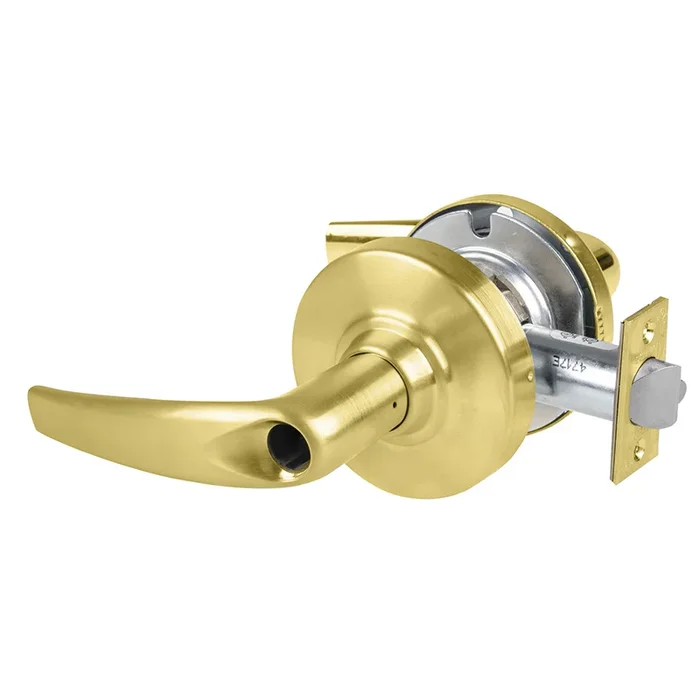

Schlage ALX70L SPA 606 Lock Cylindrical Lock

• Classroom – Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked
• ANSI/BHMA Certified A156.2
• 1-3/8″ to 1-3/4″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.2-2011 Series 4000, Grade 2

Ansi Function: F84 – Classroom

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Less Cylinder

Cylinders Present: Single Cylinder

Design: Sparta Lever

Door Thickness: 1-3/8″ – 1-3/4″

Finish: 606/US4

Finish : Satin Brass

Finish Family: Matte Brass

Fire Rated: Yes {Variable}

Fire Rating: 3 Hours {A}

Function: 70-Classroom Lock

Function Family: Classroom

Grade: Grade 2

Handing: Non-handed

Installation: Commercial

Latch Bore Diameter: 7/8 In.

Lever Knob: Lever

Lever Knob Design Name: Sparta

Leverknob Design: SPA – Sparta Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Classroom Lock

Maximum Door Thickness: 1-3/4 In.

Minimum Door Thickness: 1-3/8 In.

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Pbs Options: 4541275

Pins: 6

Product Height: 4.5″

Product Length: 9.25″

Product Width: 8.13″

Projection: 3-1/2 In.

Restrictions: None

Rose Escutcheon: Rose

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: Rhodes

Screws: Combination

Series: ALX Series Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 47267042

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 47267101

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike: ANSI Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL

Unit of Measure: Each
