Grade 2 Classroom Deadbolt by Arrow – Secure Your School Premises

Description

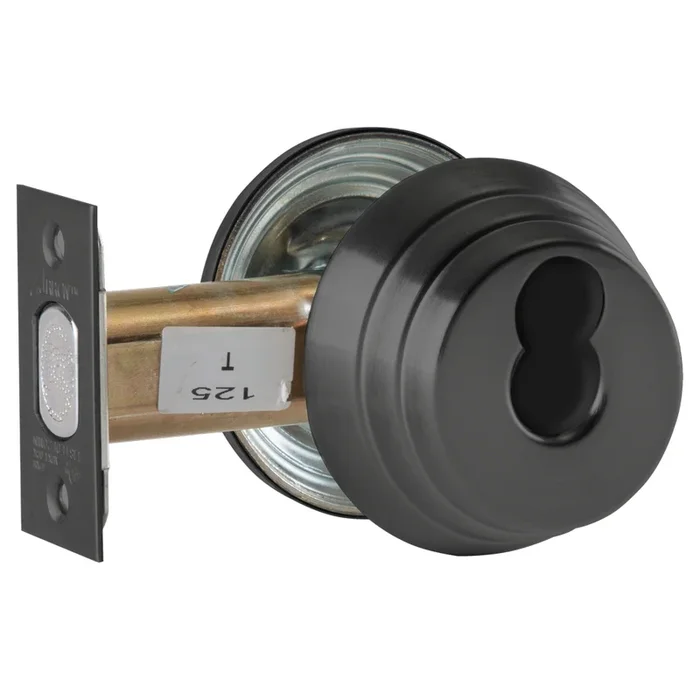

Arrow Lock E74-IC BSP Grade 2 Classroom Deadbolt

Arrow E74-IC BSP Grade 2 Classroom Deadbolt offers unmatched security and durability for commercial applications. Designed with a Grade 2 rating, this classroom deadlock features a sleek black suede powder coat finish, enhancing both aesthetics and resilience. Its two-piece housing incorporates a free-spinning outer ring, effectively preventing wrenching attempts. The deadbolt boasts a robust 1″ solid steel throw, reinforced with a hardened steel pin insert for added security. Installation is straightforward, accommodating door thicknesses between 1-3/8″ and 1-3/4″. The deadbolt is field reversible, ensuring flexibility in handing to suit various door configurations. Supplied with two 1/4″ steel thru-bolts, it guarantees a secure fit. Included with the lock is a #395 strike pack, suitable for both metal and wood doors. The E74-IC is compatible with a range of cylinder options, including SFIC prep less core, and can accept competitive cylinders, offering versatility for your security needs. With Underwriters Laboratories (UL) and Canadian Underwriters Laboratories (CUL) listings for use on A label doors, this deadbolt meets stringent safety standards, making it an ideal choice for building professionals and knowledgeable homeowners seeking reliability and peace of mind.

Grade 2 Classroom Deadbolt

Grade 2 Classroom Deadlock, SFIC Prep Less Core, Black Suede Powder Coat Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing:Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting:supplied with two 1/4″ (6.35 mm) steel thru-bolts.

Deadbolt:1″ (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset:2-3/8″ (60.32 mm), 2-3/4″ (69.85 mm).

Deadbolt fronts:

• 2-1/4″ (57.15 mm) x 1″ (25.40 mm) standard for 2-3/8″ (60.32 mm) backset,
• 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm) standard for 2-3/4″ (69.85 mm) backset. Drive-in deadbolts are available.

Doors:1-3/8″ (34.925 mm) to 1-3/4″ (44.45 mm) thick standard.

Strikes:Supplied standard with #395 strike pack (metal and wood).

Handing:All functions are reversible.

Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers’ cylinders but cannot be ordered with the product.

Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish:US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device

Attributes

Ansi: A156.5

Bolt Projection: 1″ Deadbolt

Box Depth Fraction: 4

Box Height Fraction: 3

Box Width Fraction: 4

Commercial Residential: Commercial

Cylinder Type: SFIC Prep Less Core

Cylinders Present: SFIC Prep Less Core

Door Thickness: 1-3/8″ – 1-3/4″

Finish: BSP

Finish Family: Black

Function: 74IC-Classroom Deadbolt

Grade: Grade 2

Handing: Field Reversible

Installation: Commercial

Limited Warranty: 1 Year

Lock Face Size: 2-1/4 In. x 1 In.

Manufacturer Function: E74-IC

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/8″

Pack Height: 3″

Pack Height 2: 5″

Pack Length: 4″

Pack Length 2: 13″

Pack Qty: 1

Pack Volume: 48 in³

Pack Volume 2: 812.5 in³

Pack Width: 4″

Pack Width 2: 12.5″

Screws: Combination

Series: Arrow E Series Deadbolts

Ship Weight: 1.7 lbs.

Std Latch Backset Dim: 2-3/8″

Std Latch Number: 141

Std Latch Type: Deadbolt

Std Strike Height: 2-3/4″

Std Strike Number: 395 (345 & 346)

Std Strike Type: Flat Strike

Std Strike Width: 1-1/8″

Strike Dimensions: 2-3/4″ x 1-1/8″

Subtype: Deadbolts

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 12

Resources

• Arrow E Series Deadbolts Cut Sheet
• E Series Cut Sheet
• Management Control Deadbolt Cut Sheet
• Occupancy Indicator Deadbolt Cut Sheet
