Grade 2 Bed/Bath Privacy Lock by Schlage – Secure and Stylish Door Hardware

Description

Schlage S40D FLA 609 LH Grade 2 Bed/Bath Privacy Lock Instructions

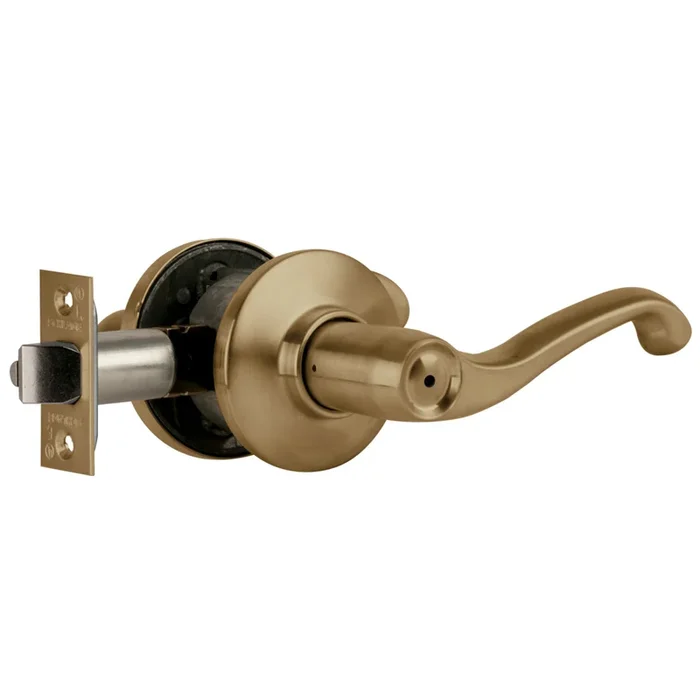

Schlage S40D FLA 609 LH Grade 2 Bed/Bath Privacy Lock combines durability and style, making it an ideal choice for both commercial and residential applications. This Grade 2 tubular lock features a privacy function, ensuring secure access for bathrooms and bedrooms without the need for a key. The sleek Flair lever design, finished in an elegant antique brass, adds a touch of sophistication to any door. Designed for left-hand installations, this lock accommodates door thicknesses ranging from 1-3/8″ to 1-7/8″. It meets ANSI A156.2, Series 4000, Grade 2 standards, ensuring reliable performance and peace of mind. With a bolt projection of 1/2″ and a 2-1/2″ projection, the lock is both functional and aesthetically pleasing. The non-keyed cylinder simplifies operation, while the dead latch mechanism enhances security. Schlage stands behind its products, offering a limited 3-year warranty, reflecting the brand’s commitment to quality and reliability. Additionally, the lock is UL/cUL listed and complies with ADA requirements, making it accessible for all users. Easy to install and maintain, the Schlage S40D FLA 609 LH Lock is a smart choice for anyone seeking a robust and stylish locking solution.

Grade 2 Bed/Bath Privacy Lock

Grade 2 Tubular Lock, Privacy Function, Non-Keyed, Flair Lever, Antique Brass Finish, Left Hand

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for schools, hospitals, hotels, commercial and institutional buildings, multi-family properties and homes.From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments – when property and personal security are at stake. With a wide range of products, styles and finishes, Schlage has products for the most demanding project specifications.In public buildings, in the workplace, and in homes, at the end of the day Schlage stands for one thing: strong. When you choose a Schlage lock, you can be sure you’ve done the job right, the first time. After all, our products are among the most durable and dependable on the market today. Our locks are easy to install, and simple to repair and maintain. That means fewer callbacks for you and total safety and security for your customers.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2, Series 4000, Grade 2

Ansi Function: F76 – Privacy

Baa Qualified: Yes

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 9-1/2″

Box Height Fraction: 4-3/4″

Box Width Fraction: 8-1/4″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Door Thickness: 1-3/8″ to 1-7/8″

Dust Box: Plastic

Finish: 609/US5

Finish Family: Matte Brass

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 40-Privacy

Function Family: Privacy

Grade: Grade 2

Handing: Left Hand

Installation: Commercial

Latch Bore Diameter: 7/8″

Lever Knob: Lever

Lever Knob Design Name: Flair

Leverknob Design: FLA – Flair Lever

Leverknob Design Family: Straight Lever

Limited Warranty: 3 Years

Lock Face Size: 1″ x 2-1/4″

Manufacturer Function: Bath/Bedroom Privacy Lock

Maximum Door Thickness: 1-7/8″

Minimum Door Thickness: 1-3/8″

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Projection: 2-1/2″

Restrictions: None

Rose Escutcheon: Rose

Roseescutcheon Design: 2-1/2″ Rose Diameter

Roseescutcheon Dimensions: 2-9/16″

Screws: Combination

Series: S Series Tubular Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/8″ – 2-3/4″

Std Latch Number: 16-203

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 2-3/4″

Std Strike Number: 10-001

Std Strike Type: T-Standard Strike

Std Strike Width: 1-1/8″

Strike Dimensions: 1-1/8″ x 2-3/4″

Subtype: Tubular Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL

Unit of Measure: Each

Resources

• 10-001, 10-013, 10-016, 10-019 Strikes, Metal Template
• 10-001, 10-013, 10-016, 10-019 Strikes, Wood Template
• 10-025, 10-072, 10-087 Strikes, Metal Door Jamb Template
• 10-025, 10-072, 10-087 Strikes, Wood Door Jamb Template
• 10-027 Strike, Wood Door Jamb Template
• S Series Installation Guide
• S Series Tubular Lever Locks Cut Sheet
• Von Duprin Finishes Chart
