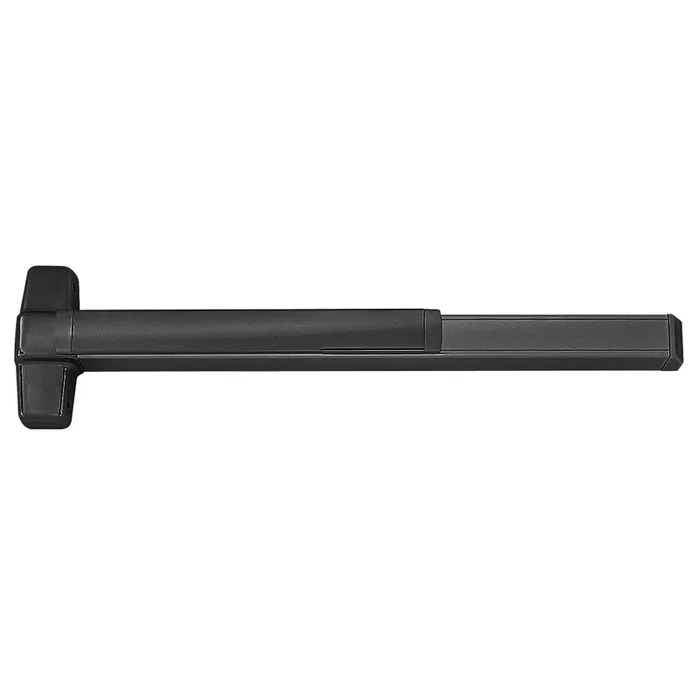

Grade 1 Wood Door CVR Exit 711 by Von Duprin

Description

Von Duprin RX9847WDCEO-F 4 315 LBR Grade 1 Wood Door CVR Exit 711 Instructions

Von Duprin RX9847WDCEO-F 4 315 LBR Grade 1 Wood Door CVR Exit 711 is a robust Grade 1 Concealed Vertical Rod Exit Bar, specifically designed for use on wood doors. With a length of 48 inches, this fire-rated exit device is ideal for exit-only applications, ensuring safe egress in commercial settings. It features a sleek black anodized aluminum finish that integrates seamlessly with various architectural styles. This device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1, guaranteeing enhanced safety and durability. The RX9847WDCEO-F is designed for doors ranging from 80 to 100 inches in height, accommodating a door thickness of 1-3/4 inches to 2-1/4 inches and widths from 34 to 48 inches. Its non-handed design allows for easy field reversibility, simplifying installation. The exit device operates with a request to exit switch and includes no bottom rod or dogging options, ensuring a streamlined profile. Additionally, it meets BAA qualification standards, making it suitable for federal projects. Weighing 19 lbs and capable of shipping via UPS, this exit device combines practicality with compliance, making it a reliable choice for building professionals and knowledgeable homeowners alike.

Grade 1 Wood Door CVR Exit 711

Grade 1 Concealed Vertical Rod Exit Bar for Wood Doors, 48″ Device, Fire Rated, Exit Only, Less Bottom Rod, Request to Exit Switch, Less Dogging, Black Anodized Aluminum Finish, Field Reversible

9847WDC/9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Device Length: 48″

Device Type: Concealed Vertical Rod

Dogging Options: Less Dogging

Door Height: 80″ to 100″

Door Material: Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 34″ to 48″

Finish: 315/335

Finish Family: Black

Fire Rated: Yes

Fire Rating: Yes {Variable}

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Exit Only, Accepts Various Trim

Mechanical Options: Less Bottom Rod

Minimum Stile Size: 3-1/2″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 49″

Pack Length 2: 50″

Pack Qty: 1

Pack Volume: 2572.5 in³

Pack Volume 2: 9400 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 45″

Product Width: 3.75″

Restrictions: None

Reversible: Yes

Series: 9847WDC Series Concealed Vertical Rod Exit Devices

Ship Weight: 19 lbs.

Subtype: Concealed Vertical Rod Exit Devices

Switch Type: Request to Exit

Top Strike: 338

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL 10C

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3

Resources

• 98/9947 Service Manual
• 9847WDC Series Concealed Vertical Rod Exit Devices Cut Sheet
• QEL Conversion Kit for 98/99 Series Installation Instructions
• Von Duprin Finishes Chart
