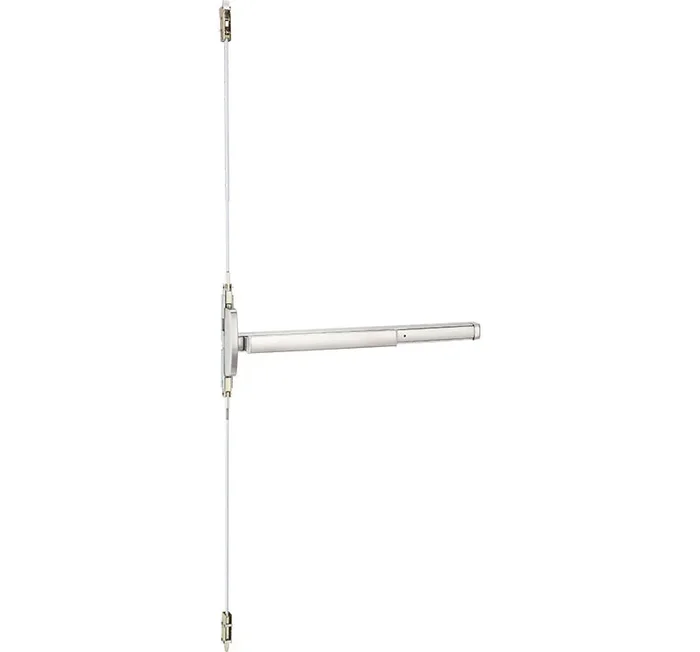

Grade 1 SVR Exit Device by PHI – Durable Surface Vertical Rod Security Solution

Description

PHI ELRTS2201LBR 630 48 Grade 1 SVR Exit Device Instructions

PHI ELRTS2201LBR 630 48 Grade 1 SVR Exit Device delivers exceptional performance and reliability for commercial door applications. Designed with a wide stile pushpad and a length of 48 inches, this Grade 1 surface vertical rod exit device is ideal for both single and double door setups. It features an exit-only function and hex key dogging for enhanced security, while the electric latch retraction option ensures seamless operation. The Apex 2000 Series is favored by architects and facility managers in healthcare and educational settings due to its elegant design and robust engineering. All devices are UL listed for panic and fire hardware, meeting ANSI A156.3 Grade 1 standards for quality assurance. Crafted from heavy wrought brass, bronze, or stainless steel, the components are built to withstand wear and tear, while a satin stainless steel finish adds a sleek touch. Field-reversible for easy installation, this exit device accommodates doors with a thickness of 1-3/4″ to 2-1/4″ and a minimum stile size of 4-1/4″. The device is also retrofit compatible with existing mounting holes from other manufacturers. With a one-year limited warranty, the PHI ELRTS2201LBR is a testament to durability and efficiency in exit solutions.

Grade 1 SVR Exit Device

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48″ Device, Exit Only Function, Hex Key Dogging, Electric Latch Retraction, Touchbar Monitor, Less Bottom Rod, Satin Stainless Steel Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double door applications.

• DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
• FUNCTIONS – Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
• BASE MATERIAL – The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart on page 3. CHASSIS – Investment Cast Steel, Zinc Dichromated.
• TOP LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw.
• REVERSIBLE – Reversible for all functions and trims. Standard packing RHRB.
• UL LISTED – Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA – Devices are BHMA certified ANSI 156.3, Grade 1.
• FINISHES – 605, 606, 612, 613, 625, 628, 630.
• CYLINDERS – Rim type, not furnished standard. Specify when required.
• STILE WIDTH – See Stile Information on page 36.
• LESS BOTTOM ROD (LBR) OPTION – Specify suffix “LBR” (e.g. 2208LBR). See UL FIRE LABEL RATING chart on page 39. Fire Rated Devices include FB277 Fire Bolt Assembly. F
• RETROFIT APPLICATIONS – The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).

Attributes

Manufacturer surcharge: 7.0%

Ansi: A156.3

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Country of origin: USA

Device Length: 48″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Material: All Types

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 4′

Electric Options: Electric Latch Retraction

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Grade: Grade 1

Handing: Field Reversible

Includes Trim: No

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Exit Only

Mechanical Options: Less Bottom Rod

Minimum Stile Size: 4-1/4″

Origin: USA

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 2200 Series Apex Surface Vertical Rod Exit Devices

Strike Bottom: S460

Subtype: Surface Vertical Rod Exit Devices

Switch Type: Touchbar Monitor

Top Strike: S300

Type: Exit Devices

Ul Listing: UL10C

Unit of Measure: Each
