Description

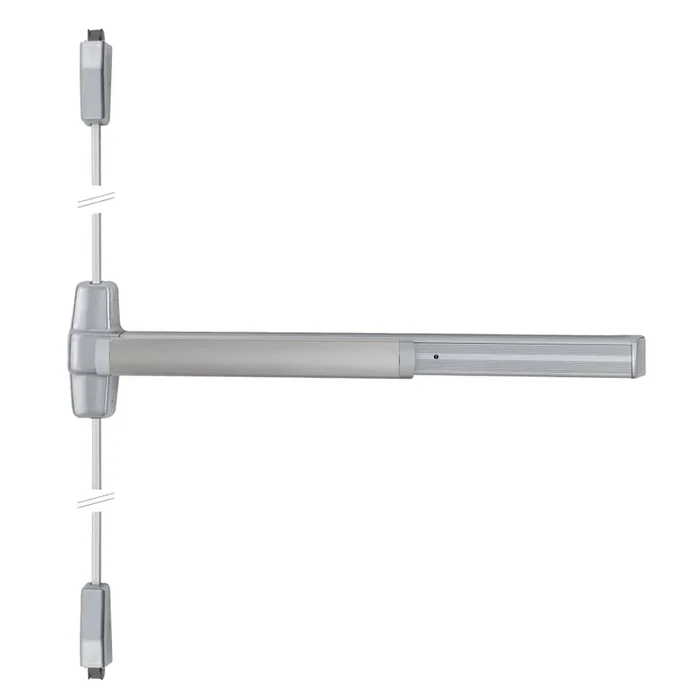

Von Duprin 9927EO 4 US28 Grade 1 SVR Exit Device 628

Von Duprin 9927EO 4 US28 Grade 1 SVR Exit Device 628 is a top-tier surface vertical rod exit device designed for high-traffic environments. This Grade 1 exit bar features a wide stile pushpad and is suitable for doors up to 84 inches in height. The 48-inch panic device is UL listed for panic exit hardware, ensuring compliance with safety standards. Its satin aluminum clear anodized finish not only enhances its durability but also provides a modern look that complements various architectural styles. This exit device is engineered for both single and double doors and comes with hex key dogging for ease of use. The 9927 model offers field-reversible handing, making installation straightforward and adaptable to different door configurations. Designed to accommodate a wide range of door widths from 34 to 48 inches, it fits standard hollow metal doors with 86 or 161 cutouts. With a deadlocking anti-friction latch bolt and a robust mechanism case measuring 8″ x 2 3/4″, the 9927EO ensures reliable performance and security. The vertical rods are constructed from 1/2″ square tubing, with optional extension rods available for taller doors. Experience peace of mind and exceptional functionality with the Von Duprin 9927EO exit device, a reliable choice for commercial applications.

Grade 1 SVR Exit Device 628

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Panic Device, 84″ Door Height, Exit Only, Less trim, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.

Surface mounted vertical rod device.

9927 series surface vertical rod exits are made for high traffic environments.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8″ (1006 mm)
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
• Door undercut 1 /4″ (7mm) recommended
• Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2014, Grade 1

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Cylinder Type: Non-Keyed

Device Length: 48″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 84″

Door Material: All Types

Door Thickness: 1-3/4″

Door Width: 34″ – 48″

Finish: 628/US28

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-11/16″

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 49″

Pack Length 2: 50″

Pack Qty: 1

Pack Volume: 2572.5 in³

Pack Volume 2: 9400 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 9927 Series Surface Vertical Rod Exit Device

Ship Weight: 20 lbs.

Strike Bottom: 248L4 / 304L

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 299

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3

Upc: 43156977970

Upc Code: 43156977970
