Description

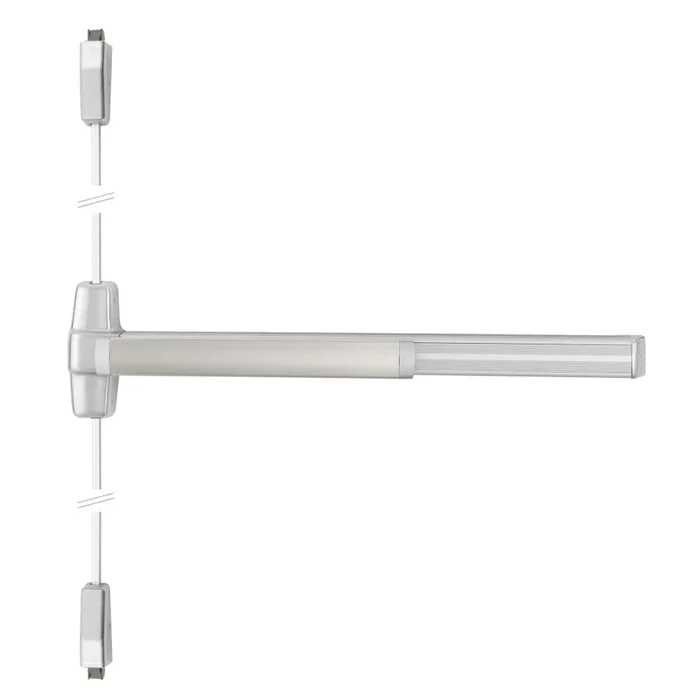

Von Duprin EL9927EO-F 3 26D Grade 1 SVR Exit Device 626
Von Duprin EL9927EO-F 3 26D Grade 1 SVR Exit Device 626 offers robust security and convenience for high-traffic environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is designed for 36″ fire-rated doors with an 84″ height, making it suitable for various commercial applications. With electric latch retraction capability, it enhances ease of use while ensuring compliance with safety standards. Constructed to accommodate a range of single and double doors, the EL9927EO-F is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1. Its field-reversible design allows for flexible installation, ensuring it fits various door styles with minimal hassle. The device features a deadlocking anti-friction top and bottom bolt with a 5/8″ throw, providing reliable security. This exit device is designed for doors with thickness ranging from 1-3/4″ to 2-1/4″ and widths between 28″ and 36″. The satin chrome finish not only provides a sleek appearance but also ensures durability. With a limited one-year warranty and easy installation, the Von Duprin EL9927EO-F is a dependable choice for any commercial property looking to enhance safety and accessibility.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Fire-rated Device, 84″ Door Height, Exit Only, Less trim, Electric Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Electric Options: Electric Latch Retraction
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 10 Things You Need to Know About the Von Duprin Chexit
- 98/9927 Installation Instructions
- 98/9927 Surface Vertical Rod Exit Device Service Manual
- 98/9927-F-LBR Series Wood Door Template
- 9927 Latch & Strike Templates
- Chexit (CX) Data Sheet
- HH98/9927 & HH98/9927-F Installation Instructions
- Introduction to Von Duprin Exit Devices
- QEL 98/99 Baseplate Conversion Series Installation Instructions
- QEL Conversion Kit for 98/99 Series Installation Instructions
- QEL Data Sheet
- QEL Sell Sheet
- Quiet Electric Latch FAQ
- Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
- Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
- Von Duprin 33/99 LD Kit Installation Instructions
- Von Duprin Exit Alarm Kit Sell Sheet
- Von Duprin Finishes Chart
- Von Duprin Pneumatic Exit Device Installation Instructions
- Von Duprin WS9827/WS9927 & WS9827-F/WS9927-F Windstorm Exit Device Installation Instructions
