Grade 1 SVR Exit Device 626 by Von Duprin – Secure and Reliable Access Control

Description

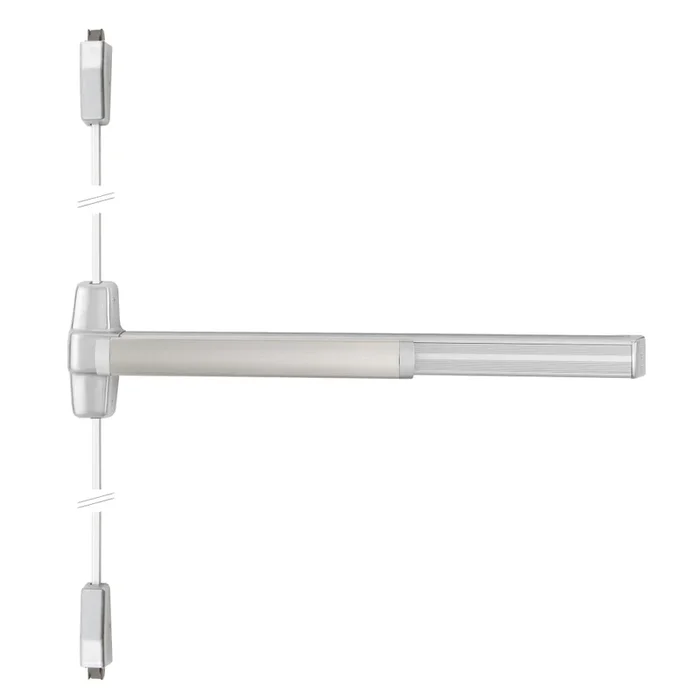

Von Duprin QEL9927L-01 3 26D RHR Grade 1 SVR Exit Device – 626 Model

Von Duprin QEL9927L-01 3 26D RHR Grade 1 SVR Exit Device 626 is engineered for high-traffic environments, offering robust safety and reliability. This Grade 1 surface vertical rod exit device features a wide stile pushpad, measuring 36 inches, and is designed to fit doors up to 84 inches in height. It incorporates a classroom function with an elegant lever and escutcheon, ensuring ease of use while maintaining security. The QEL9927L-01 boasts motorized latch retraction, enhancing convenience during egress. With a satin chrome finish, it combines aesthetic appeal with durability, suitable for various door materials. The device is UL listed for panic exit applications and certified to ANSI/BHMA A156.3 2014, Grade 1 standards, ensuring compliance and reliability. Field reversible handing allows for flexible installation on both left- and right-hand doors. The deadlocking anti-friction latch bolts provide an added layer of security with a 5/8-inch throw. Ideal for commercial settings, this exit device accommodates standard 1¾ inch thick doors and offers adaptability with extension rods for taller doors. With a limited one-year warranty and a weight of 22 lbs, the Von Duprin QEL9927L-01 is a dependable choice for those prioritizing safety and functionality in their access solutions.

Grade 1 SVR Exit Device 626

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Panic Device, 84″ Door Height, Classroom Function, 01 Lever with Escutcheon, Motorized Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.

Surface mounted vertical rod device.

9927 series surface vertical rod exits are made for high traffic environments.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8″ (1006 mm)
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
• Door undercut 1 /4″ (7mm) recommended
• Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2014, Grade 1

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Rim

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Less Dogging

Door Height: 84″

Door Material: All Types

Door Thickness: 1-3/4″

Door Width: 28″ – 36″

Electric Options: Motorized Latch Retraction

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Classroom

Minimum Stile Size: 3-11/16″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 9927 Series Surface Vertical Rod Exit Device

Ship Weight: 22 lbs.

Strike Bottom: 248L4 / 304L

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 299

Trim Design: Lever with Escutcheon

Trim Part No: 996L-01-R/V 26D

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
