Grade 1 SVR Exit Device 626 by Von Duprin | High-Quality Exit Solutions

Description

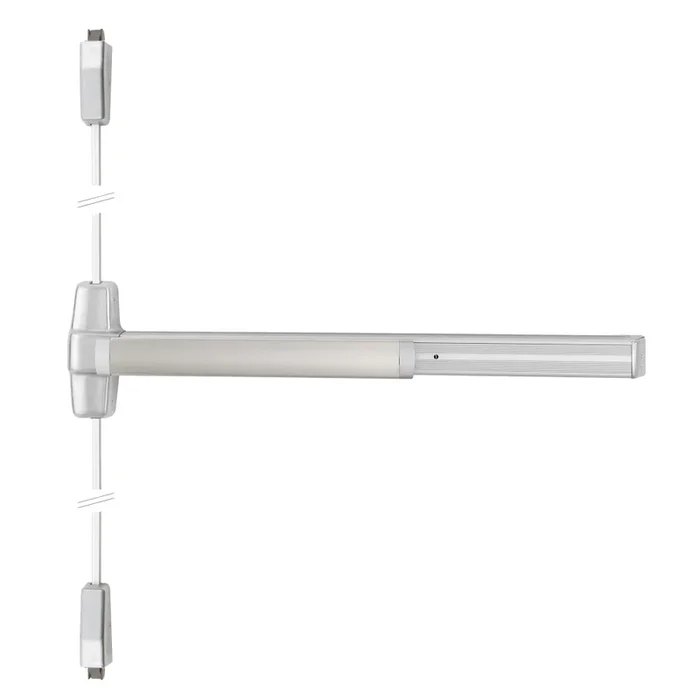

Von Duprin 9927TP 4 26D Grade 1 SVR Exit Device 626

Von Duprin 9927TP 4 26D Grade 1 SVR Exit Device 626 delivers exceptional security and functionality for commercial applications. Designed for high-traffic environments, this Grade 1 surface vertical rod exit device features a wide stile pushpad and a 48″ panic bar, making it ideal for both single and double doors. With a classroom function and thumbpiece pull, users can easily operate the device, while hex key dogging ensures reliability during non-emergency situations. Constructed to meet ANSI/BHMA A156.3 2014 standards, the 9927 is UL listed for panic exit hardware, providing peace of mind in emergencies. It fits doors with heights up to 84″ and can accommodate a variety of door widths, from 34″ to 48″. The device is field reversible, ensuring easy installation and adaptability to your specific door setup. The satin chrome finish not only adds a sleek aesthetic but also enhances durability. With deadlocking anti-friction bolts and a recommended door undercut of ¼”, this unit ensures secure closure. Each device comes with a comprehensive screw pack for quick installation on metal or wood doors, underscoring Von Duprin’s commitment to quality and user-friendly design. Choose the 9927TP for reliable performance and enhanced safety in your building projects.

Grade 1 SVR Exit Device 626

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Panic Device, 84″ Door Height, Classroom Function, Thumbpiece Pull, Hex Key Dogging, Satin Chrome Finish, Field Reversible

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.

Surface mounted vertical rod device.

9927 series surface vertical rod exits are made for high traffic environments.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8″ (1006 mm)
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
• Door undercut 1 /4″ (7mm) recommended
• Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2014, Grade 1

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Rim

Device Length: 48″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 84″

Door Material: All Types

Door Thickness: 1-3/4″

Door Width: 34″ – 48″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Classroom

Minimum Stile Size: 3-11/16″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 49″

Pack Length 2: 50″

Pack Qty: 1

Pack Volume: 2572.5 in³

Pack Volume 2: 9400 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 9927 Series Surface Vertical Rod Exit Device

Ship Weight: 23 lbs.

Strike Bottom: 248L4 / 304L

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 299

Trim Design: Thumbpiece Pull

Trim Part No: 990TP-R/V 26D

Trim Type: Pull

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
