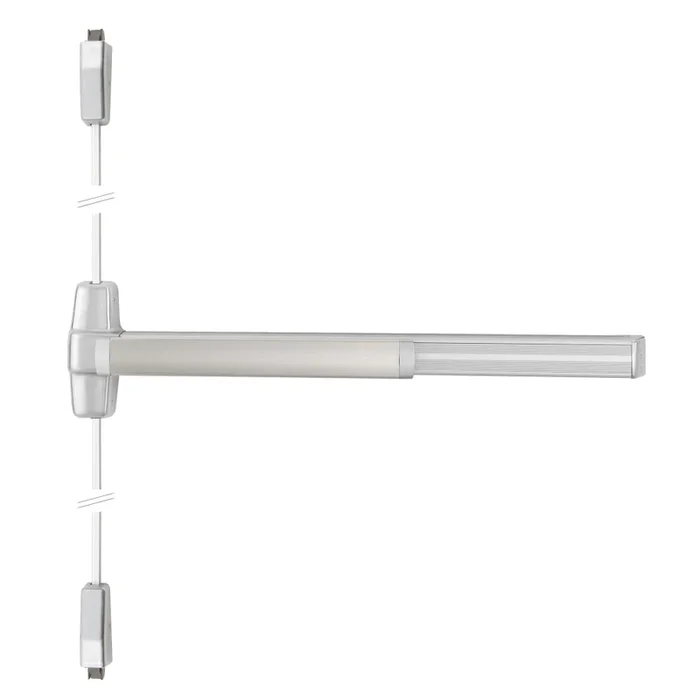

Von Duprin 9927EO-F 2 26D Grade 1 SVR Exit Device 626
Von Duprin 9927EO-F 2 26D Grade 1 SVR Exit Device 626 is a reliable and robust exit solution designed for high-traffic environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is compatible with 84″ doors, making it an ideal choice for various commercial applications. With a satin chrome finish, this exit device brings both functionality and a sleek aesthetic to your entryways. Certified to ANSI/BHMA A156.3 2014, Grade 1 standards, the 9927EO-F ensures durability and performance. It is UL listed for panic exit hardware, providing a safe egress option in emergencies. This model is designed for exit-only applications and comes with field-reversible handing for easy installation. The device accommodates various door sizes, with a length of 2′ 2″ and is suitable for doors ranging from 3′ to 4′. The deadlocking anti-friction latch bolts provide secure locking, while the smooth mechanism case ensures a seamless operation. With a limited warranty of three years, you can trust in the quality and reliability of the Von Duprin 9927EO-F. Whether you are updating existing hardware or outfitting new constructions, this exit device is an excellent choice for enhancing safety and accessibility.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 24″ Fire-rated Device, 84″ Door Height, Exit Only, Less trim, Less Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 24″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 24″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
