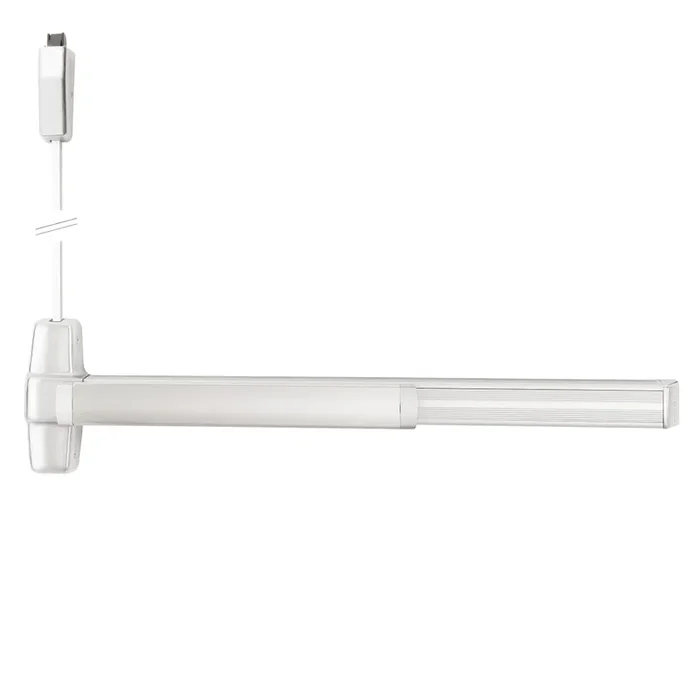

Von Duprin EL9927EO 3 US26 LBR Grade 1 SVR Exit Device 625 Instructions
Von Duprin EL9927EO 3 US26 LBR Grade 1 SVR Exit Device 625 is a robust solution designed for high-traffic environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is suitable for 36″ panic devices on doors up to 84″ in height. Engineered for reliability, it provides electric latch retraction while shipping without trim and bottom rods. The EL9927EO is UL listed for panic exit hardware and certified to meet ANSI/BHMA A156.3 2014, Grade 1 standards, ensuring its durability and safety. It is compatible with both single and double doors, covering stock hollow metal doors with 86 or 161 cutouts. The device includes a deadlocking anti-friction latch bolt with a 5/8″ throw, providing secure closure. Installation is straightforward, as it accommodates doors ranging from 28″ to 36″ wide and 1-3/4″ thick. The field-reversible design allows for flexible adaptability to various door configurations. Available in a bright chrome finish, the EL9927EO combines functionality with aesthetic appeal, making it an ideal choice for commercial applications. With a limited one-year warranty, you can trust in its performance and longevity.
Grade 1 SVR Exit Device 625
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Panic Device, 84″ Door Height, Exit Only, Less trim, Less Bottom Rod, Electric Latch Retraction, Less Dogging, Bright Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Electric Options: Electric Latch Retraction
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 18 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
