Von Duprin QEL9927L-06 3 US26 LHR Grade 1 SVR Exit Device 625 Instructions

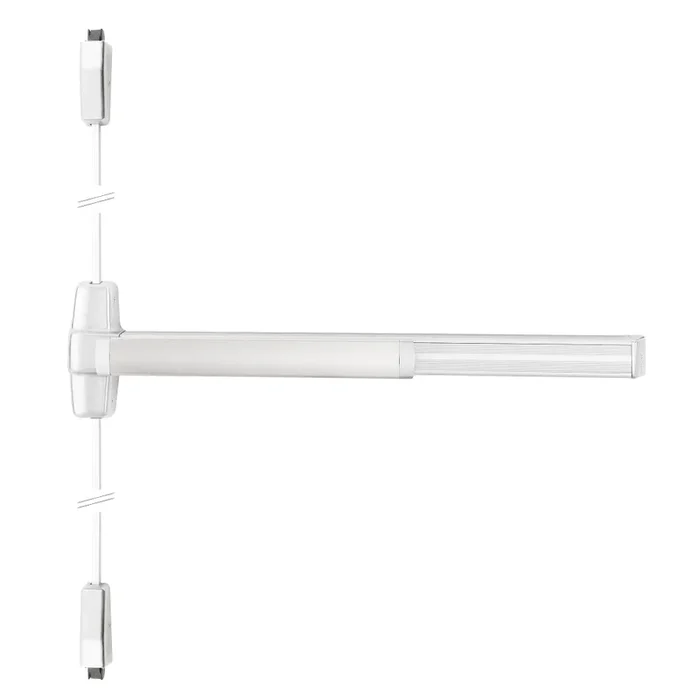

Von Duprin QEL9927L-06 3 US26 LHR Grade 1 SVR Exit Device 625 is engineered for high-traffic environments, offering a reliable solution for both single and double doors. This Grade 1 Surface Vertical Rod Exit Bar features a wide stile pushpad, designed for panic exit situations with a 36″ device length and compatibility with 84″ door heights. The device includes a motorized latch retraction feature, enhancing convenience and efficiency, while its classroom function ensures secure access control. Constructed with durability in mind, the device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1 standards. Its bright chrome finish (625) not only provides a polished look but also ensures longevity. The installation is straightforward, as the device is field reversible and accommodates various door types, including metal or wood, with a thickness of 1-3/4″. Key specifications include a deadlocking anti-friction top and bottom bolt with a 5/8″ throw, and vertical rods made of 1/2″ square tubing, which can accommodate doors over 7′. This exit device combines functionality and security, making it an ideal choice for commercial applications where safety and ease of use are paramount.
Grade 1 SVR Exit Device 625
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Panic Device, 84″ Door Height, Classroom Function, 06 Lever with Escutcheon, Motorized Latch Retraction, Less Dogging, Bright Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Electric Options: Motorized Latch Retraction
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Classroom
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-06-R/V US26
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
