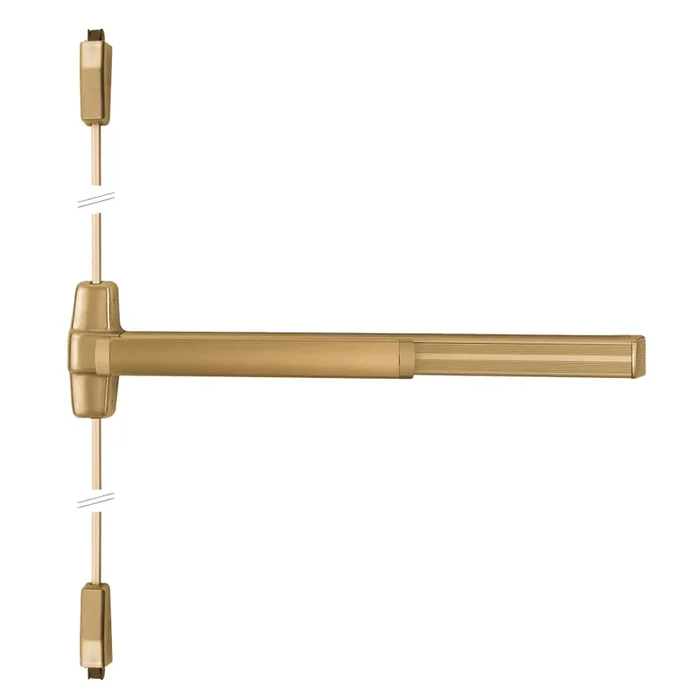

Grade 1 SVR Exit Device 612 – Von Duprin Surface Vertical Rod Exit Device

Description

Von Duprin QEL9927EO-F 3 US10 Grade 1 SVR Exit Device 612

Von Duprin QEL9927EO-F 3 US10 Grade 1 SVR Exit Device 612 is a robust solution designed for high-traffic environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is engineered to accommodate 36″ fire-rated doors with a height of 84″. Its motorized latch retraction enhances accessibility, making it an ideal choice for emergency exits. Certified to ANSI/BHMA A156.3 2014, Grade 1, this exit device is UL listed for panic exit hardware, ensuring reliability and safety in commercial settings. The device is designed without dogging and is field-reversible, allowing for flexibility in installation. With a smooth mechanism case and compatibility with standard hollow metal doors featuring 86 or 161 cutouts, it easily integrates into various door types. The 9927 series boasts a deadlocking anti-friction latch bolt with a 5/8″ throw, providing enhanced security. The vertical rods are constructed from 1/2″ square tubing, suitable for doors up to 7′ tall, with extension rods available for taller installations. Finished in a satin bronze clear coat, the QEL9927EO-F not only combines functionality with aesthetic appeal but also comes with a one-year limited warranty, ensuring long-term performance for your access control needs.

Grade 1 SVR Exit Device 612

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Fire-rated Device, 84″ Door Height, Exit Only, Less trim, Motorized Latch Retraction, Less Dogging, Satin Bronze Clear Coated Finish, Field Reversible

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.

Surface mounted vertical rod device.

9927 series surface vertical rod exits are made for high traffic environments.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8″ (1006 mm)
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
• Door undercut 1 /4″ (7mm) recommended
• Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2014, Grade 1

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Less Dogging

Door Height: 84″

Door Material: All Types

Door Thickness: 1-3/4″

Door Width: 28″ – 36″

Electric Options: Motorized Latch Retraction

Finish: 612/US10

Finish Family: Matte Bronze

Fire Rated: Yes

Fire Rating: Yes {Variable}

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-11/16″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 9927 Series Surface Vertical Rod Exit Device

Ship Weight: 16 lbs.

Strike Bottom: 304L

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 299

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL 10C

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
