Grade 1 SVR Exit Bar US19 by Von Duprin – Durable Surface Vertical Rod Exit Device

Description

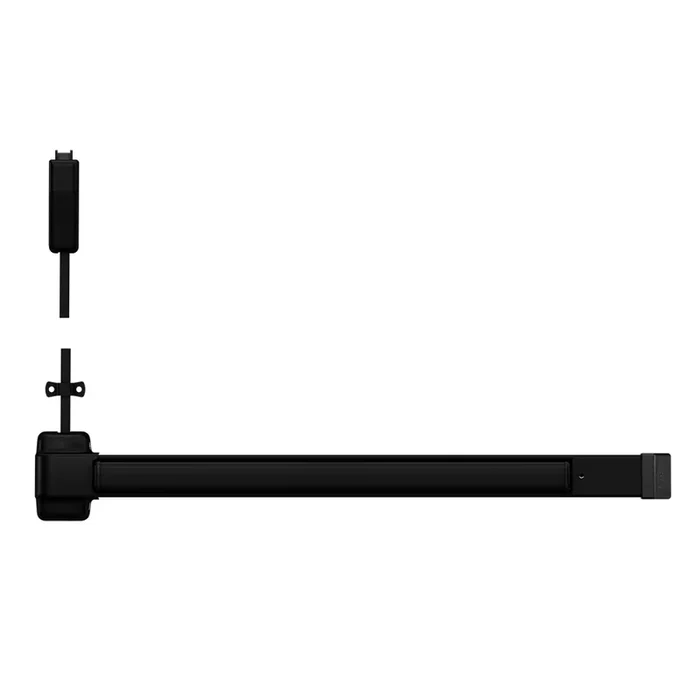

Von Duprin 2227EO 3 622 LBR Grade 1 SVR Exit Bar – US19

Von Duprin 2227EO 3 622 LBR Grade 1 SVR Exit Bar US19 is a robust surface vertical rod exit device designed for a variety of single and double doors. This Grade 1 exit bar measures 36 inches and is engineered to fit 84-inch doors, providing reliable exit functionality in commercial settings. With a sleek flat black coated finish, it seamlessly blends with modern door aesthetics while ensuring durability. The device is non-handed, allowing for field reversible installation, and fits door stiles as narrow as 3 5/8 inches. It features hex key dogging as a standard option and is UL listed for panic exit hardware, giving you peace of mind in emergency situations. The deadlocking anti-friction latch bolts provide a 5/8-inch throw, enhancing security without compromising ease of use. Designed for installation on metal or wood doors, the 2227EO accommodates door thicknesses between 1-3/4 inches and 2-1/4 inches. It is compliant with ANSI A156.3 standards and comes ready for various functions, including exit only. Whether you’re enhancing safety in a commercial building or ensuring smooth egress, the Von Duprin 2227EO exit bar is a reliable choice for your door hardware needs.

Grade 1 SVR Exit Bar US19

Grade 1 Surface Vertical Rod Exit Bar, 36″ Device, Fits 84″ Door, Exit Only, Less Bottom Rod, Hex Dogging, Flat Black Coated Finish, Field Reversible

2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.

UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3′ (914 mm),4′ (1219 mm)
• Door height: 7′ (2134 mm) standard door height extension rods available for door heights up to 10′ (3048mm) 12″ (205 mm), door height 36″ (914 mm), door height
• Device centerline from finished floor: 39 13/16″ (1011 mm)
• Center case dimensions: 4 1/4″ (108 mm) x 1 3/8″ (41 mm) x 2 3/8″ (60 mm)
• Mechanism case dimensions: 2″ (51 mm) x 3 3/4″ (95 mm)
• Projection push bar: Push bar neutral – 3 3/4″ (95 mm) Push bar depressed – 3″ (76 mm)
• Door undercut: 1 /4″ (7 mm) from finished floor recommended , 3 /4″ (19mm) maximum or 1 /8″ (3mm) from threshold
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8″ (16 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood & metal doors. Optional SNB available for device.
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Hex Dogging

Door Height: 84″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 25.875 – 36″

Finish: 622/US19

Finish Family: Black

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only, Accepts Various Trim

Mechanical Options: Less Bottom Rod

Minimum Stile Size: 3-5/8″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 36.75″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1929.38 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 4.25″

Product Length: 33.13″

Product Width: 3.75″

Restrictions: No

Reversible: Yes

Series: 2227 Series Surface Vertical Rod Exit Device

Ship Weight: 16 lbs.

Strike Bottom: 304L & 248L-4

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 299

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3

Resources

• 2227 & 2227-F K, L, & TP Series Wood Door Template
• 2227 Series Vertical Rod Exit Device Service Manual
• 2227 Surface Vertical Rod Exit Device Service Manual
• EL for Exit Devices Data Sheet
• Von Duprin 22 ALK Alarm Kit Installation Instructions
• Von Duprin 2227 Surface Vertical Rod Device Installation Instructions
• Von Duprin Finishes Chart
