Grade 1 Storeroom Lock by Schlage – Reliable Security for Your Doors

Description

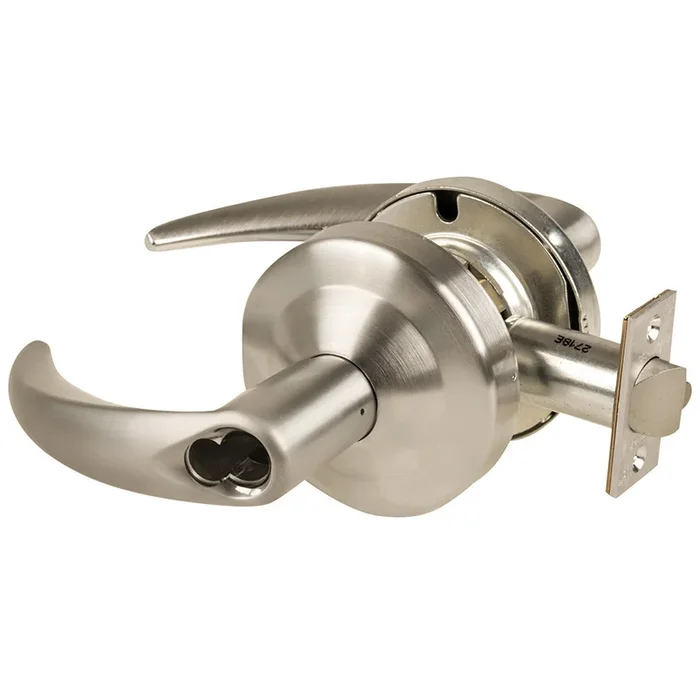

Schlage ND80JD OME 619 Lock Cylindrical Lock

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

• Storeroom, Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress
• ANSI/BHMA Certified A156.2-2011
• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F86 – Storeroom

Ansi Function : Storeroom

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Schlage FSIC Less Core

Cylinders Present: Single Cylinder

Design: Omega

Door Thickness: 1-5/8″ – 2-1/8″

Finish: 619/US15

Finish : Satin Nickel Plated Clear Coated

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 80-Storeroom Lock

Function Family: Storeroom

Grade: Grade 1

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1″

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: OME – Omega

Lever Knob Design Family: Curved Return Lever

Lever Knob Design Name: Omega

Leverknob Design: OME – Omega Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 10 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Storeroom Lock

Manufacturer Function : Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.

Maximum Door Thickness: 2-1/8″

Minimum Door Thickness: 1-5/8″

Num Pins: 6

Origin: Mexico

Pack Height: 4.75″

Pack Height 2: 10″

Pack Length: 9.5″

Pack Length 2: 16.38″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25″

Pack Width 2: 14.63″

Pbs Options: ‘4540298,4541421

Pins: 6

Product Height: 3.44″

Projection: 3-5/16″

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16″

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: 3-7/16″

Screws: Combination

Series: ND Series Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: J

Structure Function: 80

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 619

Structure Outside Trim: OME

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
