Description

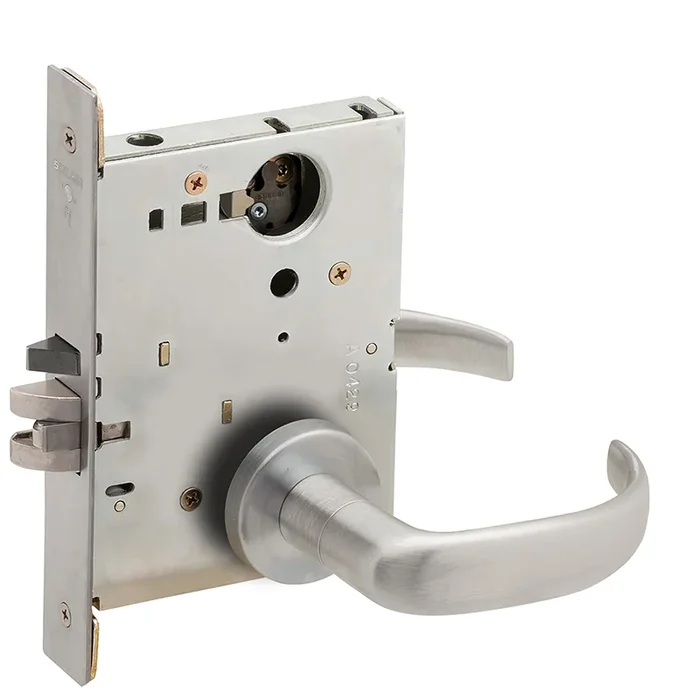

Schlage LV9080L 17A 626 Grade 1 Storeroom Lock
Schlage LV9080L 17A 626 Grade 1 Storeroom Lock is a robust solution designed for high-traffic environments such as schools, hospitals, and factories. This Grade 1 storeroom mortise lock features a satin chrome finish and a field-reversible handing, ensuring versatility in installation. Built with extra heavy-duty components, the LV9080L is crafted from heavy-gauge steel, providing exceptional durability and protection against door edge attacks. With a universal lock case that supports ten functions in one design, this lock adapts seamlessly to various applications. The inside lever, mounted screwlessly, eliminates exposed trim mount screws, enhancing both security and aesthetics. Additionally, the spring-loaded fusible link ensures fail-secure operation in case of fire, while the break-away spindle prevents unsecured failures, making it a reliable choice for safety-conscious installations. The lock’s design includes a two-piece anti-friction tongue to minimize wear and tear, and its zinc dichromate-plated working parts provide added longevity. The LV9080L is UL listed and fire-rated for up to 3 hours, underscoring its commitment to safety. Whether for commercial or industrial use, this storeroom lock offers outstanding functionality and peace of mind.
Grade 1 Storeroom Lock
Grade 1 Storeroom Mortise Lock, Less Cylinder, 17 Lever, A Rose, Vandlgard, Satin Chrome Finish, Field Reversible
Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting – no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F07 – Storeroom/Exit
Application: Vandlgard
Bolt Projection: 3/4″ Latch
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9080-Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 3″
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- L Series Mounting Plate Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
