Grade 1 Single Cylinder Deadbolt with Large Format Interchangeable Core C Keyway – Schlage Commercial

Description

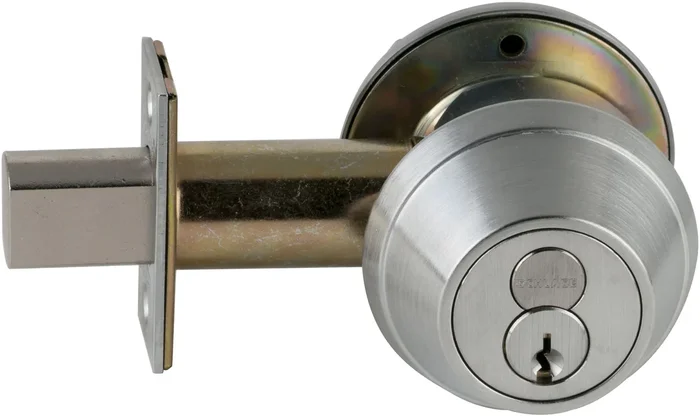

Schlage B660R626 Grade 1 Single Cylinder Deadbolt, C Keyway, Satin Chrome Finish

Schlage Commercial B660R626 Grade 1 Single Cylinder Deadbolt with Large Format Interchangeable Core C Keyway offers a robust solution for high-security needs in commercial environments. This deadbolt is designed for durability, featuring a satin chrome finish that not only enhances aesthetic appeal but also provides resistance to wear and tear. With a single cylinder mechanism, the deadbolt allows for convenient operation-thrown or retracted by key from the outside or by an inside turn unit. It is ANSI Certified A156.36 and classified as Commercial Grade 1, ensuring high performance and reliability. This model accommodates door thicknesses ranging from 1-5/8″ to 2″, and its adjustable backset can be set to either 2-3/8″ or 2-3/4″, making it versatile for various installations. The B660R626 is UL Listed for a 3-hour fire door, adding an extra layer of safety in emergency situations. The square corner deadbolt strike complements its sturdy design, while the 6-pin cylinder enhances security. Backed by a limited 3-year mechanical warranty, this deadbolt exemplifies Schlage’s commitment to quality and performance, making it an ideal choice for institutional and commercial applications.

Grade 1 Single Cylinder Deadbolt with Large Format Interchangeable Core C Keyway with 12296 Latch and 10094 Strike Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Commercial Grade 1
• Single Cylinder Deadbolt – Deadbolt Thrown or Retracted by Key from Outside or by Inside Turn Unit
• 1-5/8″ to 2″ Door Range
• UL Listed for 3 Hour Fire Door
• ANSI Certified A156.36

Attributes

Backset: Adjustable 2-3/8″ or 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 1-1/2″ or 2-1/8″ Bore

Dimension: 2-5/8″ Diameter

Door Range: 1-5/8″ to 2″

Door Thickness: 1-5/8″ to 2″

Finish: Satin Chrome

Finish Code: 626

Function: Single Cylinder

Hazardous Material: NO

Keyway: C Keyway

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Manufacturer Warranty: Limited 3 Year Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

No Of Pins: 6 Pin Cylinder

Order_ Qty: 1

PO date: 2024-09-24

Series: B600 Series

Strike: Square Corner Deadbolt Strike

Strike Dimension: 1-1/8″ x 2-3/4″

Subcategory: Commercial Deadbolts

Subtype: Commercial Deadbolts

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 194555107304
