Description

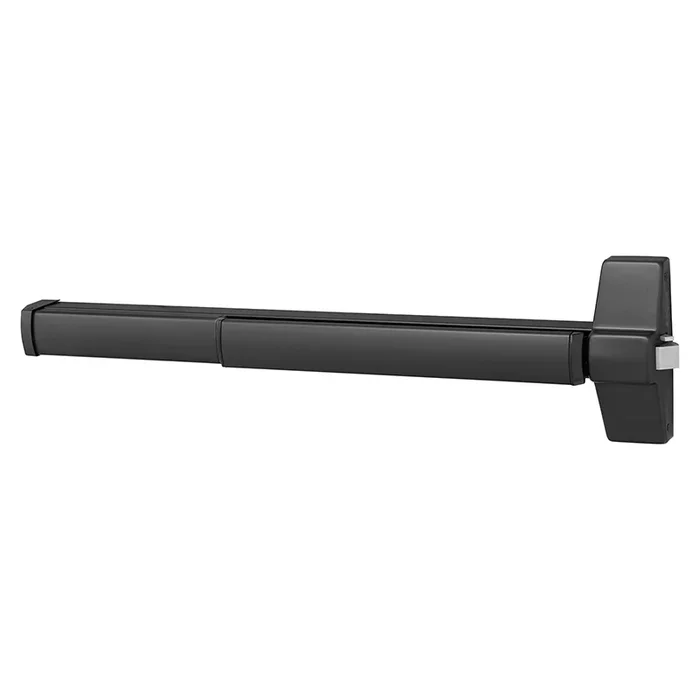

Corbin Russwin ED5200A BSP Grade 1 Rim Exit Device Instructions
Corbin Russwin ED5200A BSP Grade 1 Rim Exit Device offers unmatched durability and security for any commercial setting. Designed with a 36″ wide stile, this fire-rated exit device is finished in a sleek Black Suede Powder Coat, ensuring a modern aesthetic that complements various architectural styles. With its robust construction, the ED5200A exceeds ANSI/BHMA Grade 1 standards for both cycle and strength, making it one of the most reliable exit devices available. This exit device features a modular construction and maintenance-free design, providing ease of installation and longevity. It’s adaptable to various door materials, including metal and wood, and fits doors with a thickness of 1 3/4 inches. The ED5000 series also offers a range of electro-mechanical solutions and comes with the option of a Microshield® antimicrobial coating for added hygiene. The device is non-handed and includes an exit-only function while allowing for the acceptance of trim. With a five-year limited warranty, the ED5200A not only provides peace of mind but also incorporates 61% post-consumer recycled content, promoting sustainability in compliance with LEED MR credit 4. Experience superior exit security with the Corbin Russwin ED5200A Rim Exit Device.
Grade 1 Rim Exit Device
Rim Exit Device, 36″, Fire Rated, Black Suede Powder Coat
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today’s wide stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar and a full range of trim designs with visual diversity, including the MusâìÃâÃŽo and Vineyard Collections.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations.These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in rim, mortise, surface vertical rod and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
Attributes
Commercial Residential: Commercial
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1 3/4 In.
Door Width: 30 In. – 36 In.
Finish: BSP
Finish Family: Black
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Pack Height: 5.75″
Pack Length: 39.75″
Pack Qty: 1
Pack Volume: 2342.77 in³
Pack Width: 10.25″
Physical Appearance: Wide Stile Pushpad
Series: ED5000 Series Pushpad Exit Devices
Ship Weight: 16.1 lbs.
Strike Standard: 650F30-8
Subtype: Rim Exit Devices
Type: Exit Devices
Unit of Measure: Each
Resources
- 2 – ED4000/5000 x M94 x 2 – 6900 Powermatic x 2 Actuators
- 755-759 & 955-959 Trim for ED5000 Series
- 781N General Wiring Information
- 782 Power Controller
- 7M, 9M, F2M, F3M, T3M Trim for ED5000 Series
- 9903 & 9905 Trim For ED5000 Series
- DEED Delayed egress wired to release both exits when one goes into alarm
- Delayed Egress Exit – All Functions
- Delayed Egress x DK11 x BPS
- Delayed Egress x MKA2 x BPS
- ED 4000/5000 M94 x DK11 x BPS 24 1 Pair Doors
- ED4000, ED5000 with M61 Alarm Option and ED40AK, ED50AK Alarm Retrofit Kit Installation Instructions
- ED4000/5000 x M92 to Shunt Actuators x 6900 Powermatic x 2 Wall Plates Pair Doors
- ED4000/5000 x M92 to Shunt Actuators x 6900 Powermatic x 2 Wall Plates Sgl Doors
- ED4000/5000 x M94 x 6900 Powermatic x 2 Wall Plates
- ED4000/5000 x M94 x 6900 Powermatic x 2 Wall Plates By MKA Key Switch to Disable Exterior Actuator
- ED4000/5000 x M94 x 6900 Powermatic x DK 11 x 1 Wall Plates Interior
- ED4000/5000 x M94 x 6900 Powermatic x Mag x DK 11 x 1 Wall Plates Interior
- ED4000/5000 x M94 x DK11 x BPS 24 1
- ED4000/ED5000 – Exits with Electric Latch Pullback and-or Monitors Installation Instructions
- ED4000/ED5000 Delayed Egress Exit Device Installation Instructions
- ED4000/ED5000 Series Parts Manual
- ED5000 Series Mechanical Exit Device – Environmental Product Declaration (EPD)
- ED5000 Series Pushpad Exit Devices Cut Sheet
- ED5002 Series Double Cylinder Exit Devices
- ED5200A Series
- ED5200S(A) Series
- ED5200S(A) Series Installation Instructions
- ED5202(A) Series Rim Double Cylinder Exit Device Installation Instructions
- ED5202S(A) Series SecureBolt® Double Cylinder Exit Device Installation Instructions
- ED5400 SVR Exit Device – Environmental Product Declaration
- ED5400A & ED5470B Series
- ED5400A & ED5470B Series Installation Instructions
- ED5470(B) Series – SVR Mounting Plate
- ED5470(B) Series – SVR Mounting Plate Installation Instructions
- ED5470(B) Series-M107 Strike for WS Series ED5470(B) Exit Device Surface Vertical Rod Installation Instructions
- ED5470B & ED5860B Series Popper Installation Instructions
- ED5600A Series Installation Instructions
- ED5602(A) Series Mortise Double Cylinder Exit Device Installation Instructions
- ED5800A Series CVR
- ED5800A Series CVR Installation Instructions
- ED5860B Series CVR Installation Instructions
- Pair ED4000/5000 x M94 x 2- 6900 Powermatic x 2 Wall Plates By MKA Key Switch to Disable Exterior Ac
- TH910 Heavy Duty Thumbpiece Trim
- TH950 Heavy Duty Thumbpiece Trim
- TH955 and TH959 Heavy Duty Thumbpiece Trim
- TH957 Heavy Duty Thumbpiece Trim
- VT9 Series Anti-Vandal Pull Trim for ED5000 Series Installation Instructions
- Video: ED5800 Series Installation
- Windstorm Exit Device Shim Kits for ED5200S (A) x M107
