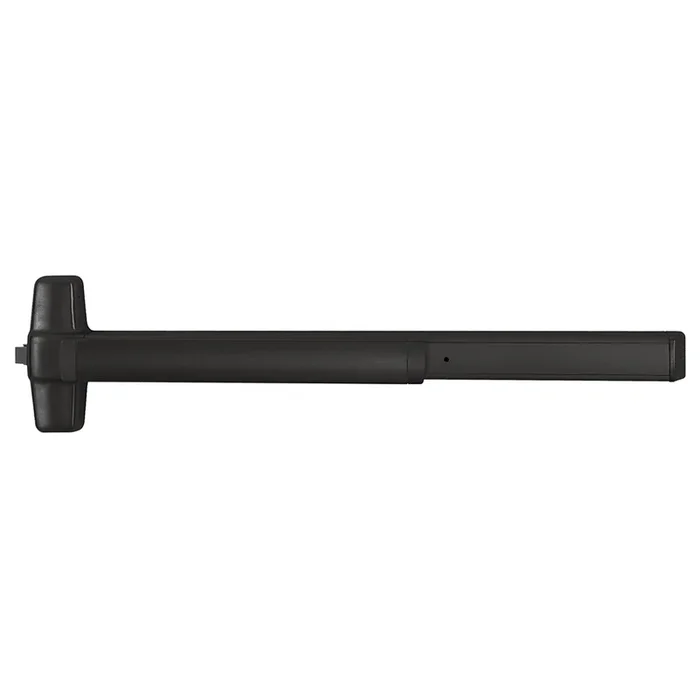

Von Duprin 98NL-OP 4 315 Grade 1 Rim Exit Device 711
Von Duprin 98NL-OP 4 315 Grade 1 Rim Exit Device offers robust security and reliable performance for high-traffic environments. Designed for both single and double doors with mullions, this Grade 1 exit device is UL listed for panic exit hardware, ensuring compliance with the highest safety standards. With a length of 48 inches, it features a night latch mechanism and hex key dogging, providing added security when needed.Constructed from durable black anodized aluminum, the device is built to withstand rigorous use in commercial settings such as schools, hospitals, and government buildings. The non-handed design simplifies installation, accommodating a wide range of door configurations. It operates effectively on doors ranging from 34 to 48 inches wide and 1-3/4 to 2-1/4 inches thick. Key specifications include a deadlocking latch bolt with a 3/4-inch throw and a convenient pushbar projection that measures 3 13/16 inches when neutral. The device includes a screw pack suitable for installation on metal or wood doors, making it a versatile choice for various applications.With its heavy-duty construction and customizable options, the Von Duprin 98NL-OP is an excellent solution for ensuring safe and efficient emergency exits in any commercial environment.
Grade 1 Rim Exit Device 711
Grade 1 Rim Exit Device, 48″, Night Latch, Hex Key Dogging, Cylinder Only, 1-1/4″ Mortise & Rim, Black Anodized Aluminum Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise & Rim
Device Length: 48″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 34″ to 48″
Finish: 315/335
Finish Family: Black
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 45″
Product Width: 3.75″
Reversible: No
Series: 98 Series Rim Exit Device
Ship Weight: 18 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Cylinder Plate
Trim Part No: 110MD-NL US19
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
