Description

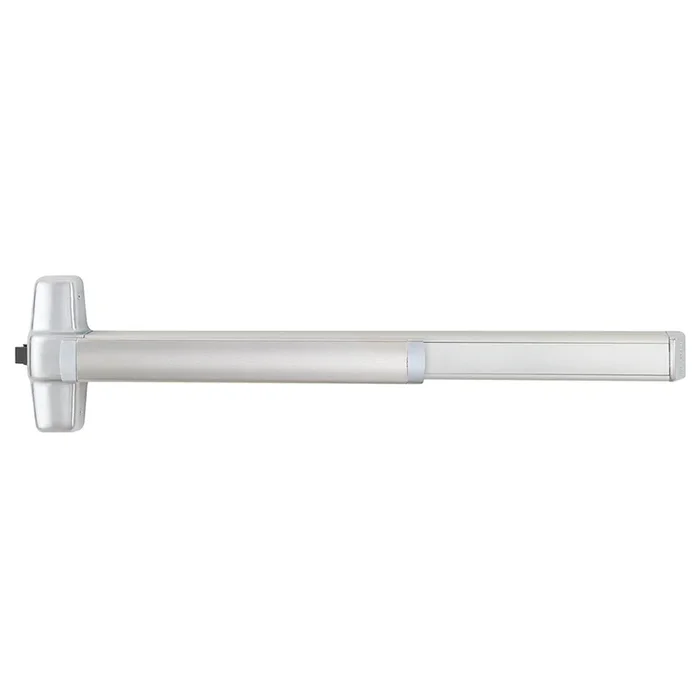

Von Duprin 98L-BE-06-F 3 32D LHR Grade 1 Rim Exit Device 630
Von Duprin 98L-BE-06-F 3 32D LHR Grade 1 Rim Exit Device 630 is a robust solution designed for high-traffic areas requiring reliable emergency egress. This Grade 1 rim exit device features a fire-rated construction, ensuring compliance with safety standards. With a passage function and a sleek 06 lever equipped with a blank escutcheon, this device provides both practicality and aesthetics.Measuring 36 inches in length, the device accommodates door sizes from 28 to 36 inches wide, making it versatile for various applications. The satin stainless steel finish not only enhances durability but also adds a contemporary touch to any setting. Designed for left-hand reverse installations, it is perfect for commercial environments such as schools, hospitals, and government buildings. The 98 Series features a deadlocking latch bolt with a 3/4-inch throw, offering enhanced security. It is field-selectable for device functions, allowing customization to meet specific needs. This heavy-duty exit device is UL listed for panic exit hardware and certified to the ANSI A156.3 2008 Grade 1 standard, ensuring maximum performance and reliability.With a limited three-year warranty, the Von Duprin 98L exit device is a trusted choice for professionals seeking quality and dependability in door hardware.
Grade 1 Rim Exit Device 630
Grade 1 Rim Exit Device, 36″, Fire Rated, Passage Function, Less Dogging, 06 Lever with Blank Escutcheon, 1-1/4″ Mortise & Rim, Satin Stainless Steel Finish, Left-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise & Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Left-Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Passage
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Reversible: Yes
Series: 98 Series Rim Exit Device
Ship Weight: 16 lbs.
Strike Standard: 299F
Subtype: Rim Exit Devices
Trim Design: Lever with Blank Escutcheon
Trim Part No: 996L-BE-06-R/V 26D LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
