Grade 1 Rim Exit Device 626 by Von Duprin – Secure & Reliable Exit Solutions

Description

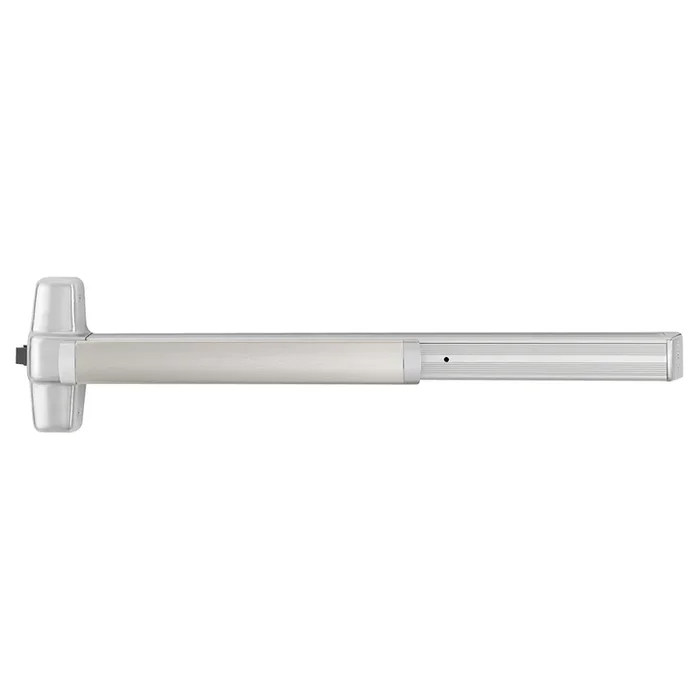

Von Duprin QM99EO 3 26D Grade 1 Rim Exit Device – 626

Von Duprin QM99EO 3 26D Grade 1 Rim Exit Device 626 offers a robust solution for emergency egress in both commercial and industrial settings. Designed as a Grade 1 Rim Exit Bar, this 36-inch device features a wide stile pushpad that ensures quick and easy exit during emergencies. The satin chrome finish not only enhances its aesthetic appeal but also provides durability against wear and tear. This exit device is UL listed for panic exit hardware, accommodating all types of single and double doors, including those with a mullion. The non-handed design simplifies installation, allowing flexibility in mounting, while the hex key dogging feature secures the pushpad in an open position when needed.With a deadlocking latch bolt that offers a 3/4-inch throw, the QM99EO ensures reliable security while facilitating swift exit. It’s compatible with doors ranging from 28 to 36 inches wide and 1-3/4 to 2-1/4 inches thick, making it versatile for various architectural applications.Moreover, the device complies with ANSI A156.3 standards and is backed by a three-year limited warranty, reflecting Von Duprin’s commitment to quality and reliability. Whether for new installations or replacements, this exit device is a dependable choice for enhancing safety in any facility.

Grade 1 Rim Exit Device 626

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Exit Only, Less Trim, Hex Key Dogging, Satin Chrome Finish, Non-handed

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

• Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3/4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 28″ – 36″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-5/8″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 33″

Product Width: 3.75″

Restrictions: None

Reversible: No

Series: 99 Series Rim Exit Device

Ship Weight: 14 lbs.

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Design: Less Trim

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
