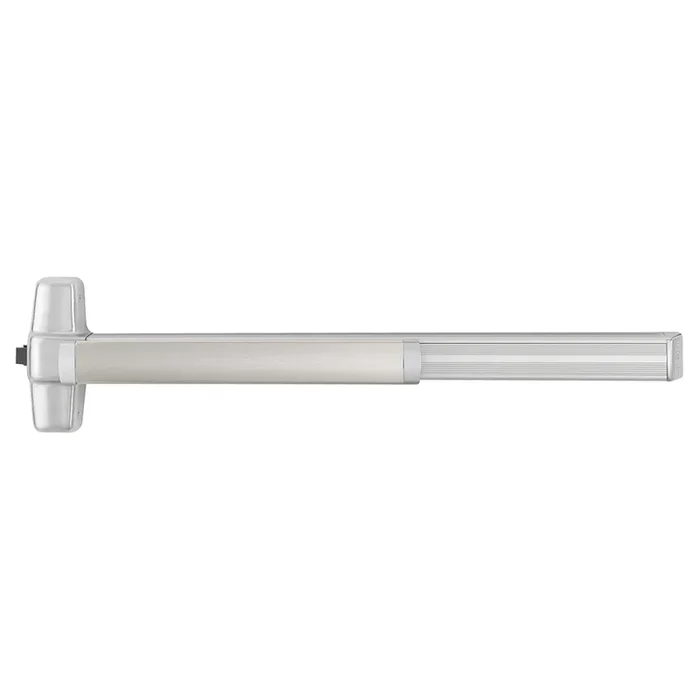

Grade 1 Rim Exit Device 626 by Von Duprin – High Security Door Hardware

Description

Von Duprin LD99L-NL-06 4 26D RHR Grade 1 Rim Exit Device – 626 Model

Von Duprin LD99L-NL-06 4 26D RHR Grade 1 Rim Exit Device 626 offers a reliable and high-performance solution for emergency exits in commercial settings. Designed with a wide stile pushpad, this 48-inch rim exit device is equipped with a night latch function, ensuring secure locking while facilitating easy exit in emergencies. Constructed to meet ANSI A156.3 Grade 1 standards, this heavy-duty exit device features a durable satin chrome finish that complements any architectural style. Its field-reversible design allows for simplified installation on both single and double doors, making it versatile for various applications. The non-handed mechanism ensures compatibility with numerous door configurations, while the deadlocking latch bolt with a 3/4″ throw enhances security. With dimensions tailored for both metal and wood doors, the LD99L accommodates door thicknesses from 1-3/4″ to 2-1/4″ and widths ranging from 34″ to 48″. The device also includes a lever trim with an escutcheon for added aesthetic appeal. UL listed for panic exit hardware, the Von Duprin LD99L-NL is the ideal choice for ensuring safe and efficient egress in any commercial environment, backed by a three-year limited warranty.

Grade 1 Rim Exit Device 626

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48″ Device, Night Latch Function, 06 Lever with Escutcheon, Less Dogging, Satin Chrome Finish, Field Reversible

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

• Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3/4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Rim

Device Length: 48″

Device Type: Rim

Dogging Options: Less Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 34″ – 48″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Night Latch

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 49″

Pack Length 2: 50″

Pack Qty: 1

Pack Volume: 2572.5 in³

Pack Volume 2: 9400 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 45″

Product Width: 3.75″

Restrictions: None

Reversible: Yes

Series: 99 Series Rim Exit Device

Ship Weight: 21 lbs.

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Design: Lever with Escutcheon

Trim Part No: 996L-NL-06-R/V 26D RHR

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
