Description

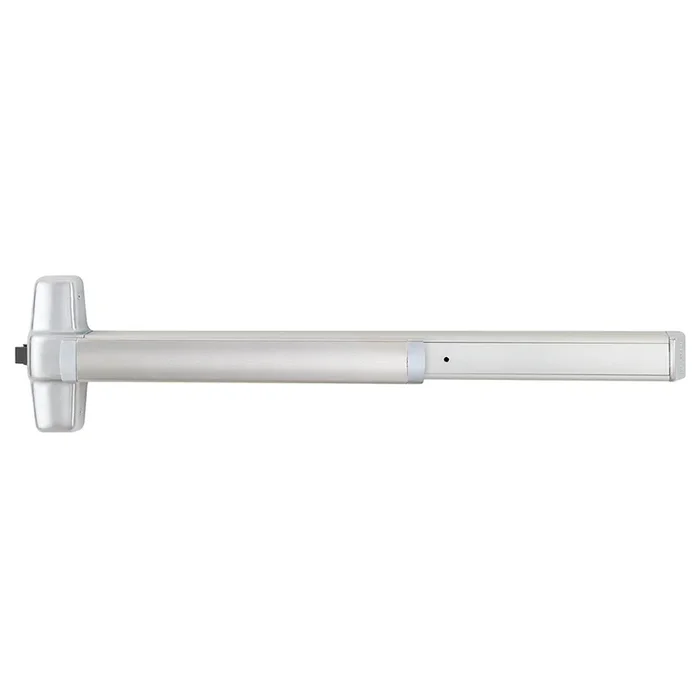

Von Duprin RX98NL 3 26D Grade 1 Rim Exit Device – 626
Von Duprin RX98NL 3 26D Grade 1 Rim Exit Device 626 delivers unparalleled security and reliability for commercial applications. Designed for both single and double doors, this Grade 1 rim exit device is UL listed for panic exit hardware, making it an ideal choice for schools, hospitals, and government buildings. Measuring 36 inches in length, the RX98NL features a night latch mechanism with hex key dogging for enhanced safety. Its non-handed design ensures easy installation on various door types, whether wood or metal, accommodating door thicknesses from 1-3/4″ to 2-1/4″. The device’s deadlocking latch bolt provides a robust 3/4″ throw, ensuring secure closure. Customizable options enhance the functionality of the RX98NL, which includes features such as a request-to-exit switch and a wide stile pushpad for effortless operation. The satin chrome finish not only adds a professional aesthetic but also ensures durability against wear and tear. With dimensions that include a center case of 8″ x 2 3/4″ x 2 3/8″, the RX98NL is built to meet the highest industry standards (ANSI A156.3 2008 Grade 1). Backed by a one-year limited warranty, this exit device is a smart investment in safety and convenience for any commercial setting.
Grade 1 Rim Exit Device 626
Grade 1 Rim Exit Device, 36″, Night Latch, Hex Key Dogging, Request to Exit, Pull, 1-1/4″ Mortise & Rim, Satin Chrome Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise & Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Reversible: No
Series: 98 Series Rim Exit Device
Ship Weight: 17 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Trim Design: Escutcheon Pull
Trim Part No: 990NL-R/V 26D
Trim Type: Pull
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
