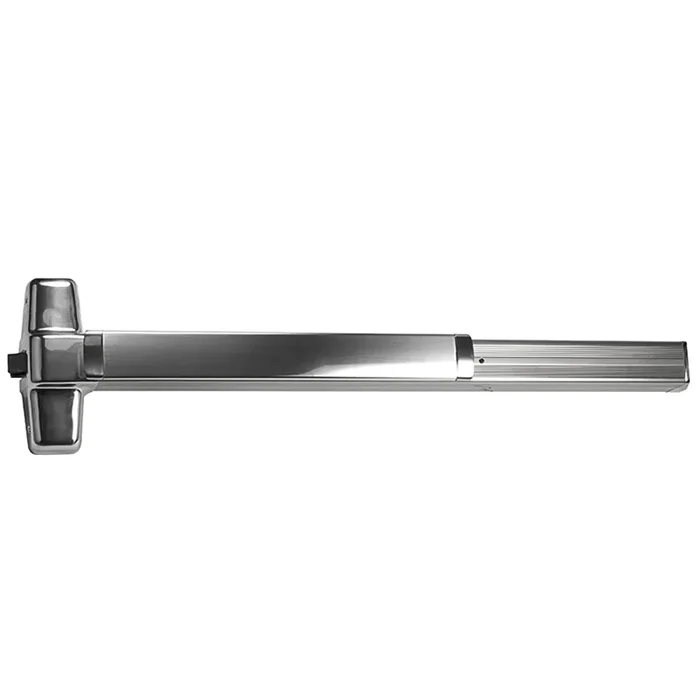

Grade 1 Rim Exit Device 625 by Von Duprin – High Security Door Hardware

Description

Von Duprin 99EO 3 US26 Grade 1 Rim Exit Device 625

Von Duprin 99EO 3 US26 Grade 1 Rim Exit Device 625 offers a robust and reliable solution for emergency egress in commercial settings. This Grade 1 rim exit device features a wide stile pushpad and a 36-inch length, ensuring easy access while maintaining safety standards. Designed for use on both single and double doors with a mullion, it is UL listed for panic exit hardware, meeting ANSI A156.3 – 2008 specifications. Constructed for durability, the heavy-duty exit device includes a grooved mechanism case, providing optimal performance in high-traffic areas. The non-handed design allows for versatile installation, while the hex key dogging feature enhances convenience. With a deadlocking latch bolt that boasts a 3/4-inch throw, security is paramount. The Von Duprin 99EO is suitable for metal or wood doors ranging from 1-3/4 inches to 2-1/4 inches thick, accommodating door widths from 28 inches to 36 inches. Its bright chrome finish not only adds an aesthetic appeal but also ensures longevity. Backed by a three-year limited warranty, this exit device is an excellent choice for those seeking reliability and safety in commercial applications. Make the Von Duprin 99EO your go-to solution for effective exit hardware.

Grade 1 Rim Exit Device 625

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Exit Only, Less Trim, Hex Key Dogging, Bright Chrome Finish, Non-handed

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

• Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3/4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 28″ – 36″

Finish: 625/US26

Finish Family: Polished Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-5/8″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 33″

Product Width: 3.75″

Restrictions: None

Reversible: No

Series: 99 Series Rim Exit Device

Ship Weight: 14 lbs.

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Design: Less Trim

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
